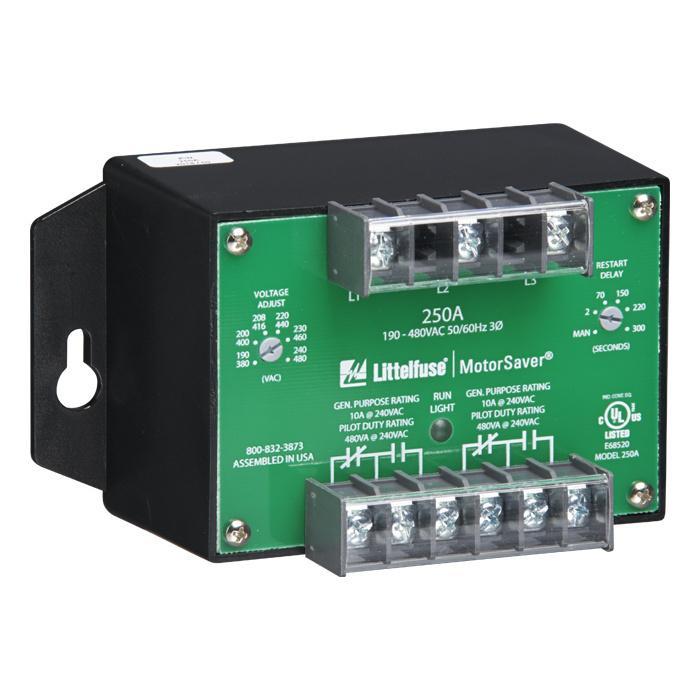

Symcom 250A Phase Failure Relay

Littelfuse® Symcom Voltage Monitoring Relay, 3-Phase, Series: 250A, 190 to 480 VAC, 50/60 Hz Frequency, DPDT 2-Form C Contact Configuration, Threaded Mounting, 2/4 s Trip Delay, 5.27 in W x 2.95 in D x 2.93 in H Dimensions

Additional Description: LTFS-250A 3-PHASE VOLTAGE MONITOR/ 190-4

Catalog Description: The 250A is a 3-phase, auto-ranging, dual-range voltage monitor that protects 190-480VAC, 50*/60Hz motors regardless of size from low and high voltage, unbalance/single-phase, and reverse-phase. The product provides a user selectable nominal voltage setpoint and the voltage monitor automatically selects between the 200V and 400V range. The 250A also features adjustable or manual restart delay. This unique microcontroller-based voltage and phase-sensing device constantly monitors the 3-phase voltages to detect harmful power line conditions. When a harmful condition is detected, the Littelfuse’s output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to acceptable levels. The Model 250A includes advanced single LED diagnostics. Five different light patterns distinguish between faults and normal conditions.
