Part Number # 1SNA165809R0100
SKU # 993411
Image Disclaimers Message
Brand: ENTRELEC
1SNA165809R0100

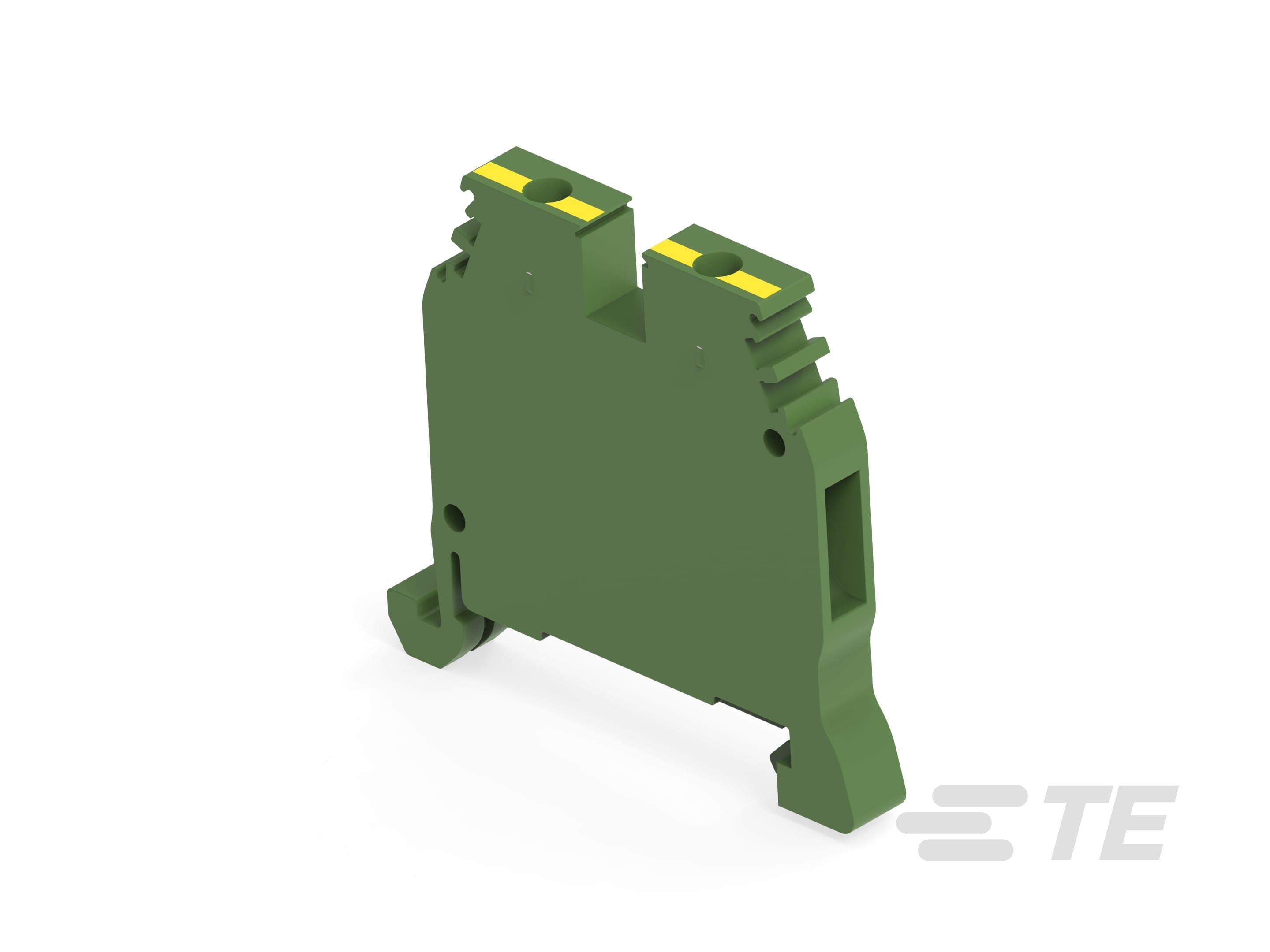

TE Connectivity 1SNA165809R0100 Terminal Block
Part Number # 1SNA165809R0100
SKU # 993411
$279.50 / 50Each
Typical price:$360.25 / Each
ENTRELEC 1SNA165809R0100 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA165809R0100 |
| SKU #: | 993411 |
| Amperage Rating: | 480 A |
| Dimensions: | 50 mm H x 6 mm W x 41 mm D, 50 mm H x 6 mm W x 41 mm L, 6 mm W x 41 mm D x 50 mm H |
| Number of Poles: | 2 |
| Series: | SNA |
| Spacing: | 0.235 in, 6, 6 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Torque Rating: | 0.5 N-m, 0.5 to 0.8 N-m |
| Type: | D4/6.P |
| Wire Size: | 12 AWG, 24 to 12 AWG |
| Color: | Green/ Yellow, Green/Yellow |
| Connection type: | Screw, Screw Clamp |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019960456 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$279.50 / 50Each
Typical price:$360.25 / Each
Quantity:
- TE Connectivity, 1SNA165809R0100, TE Connectivityrminal Block, D4/6.P, Series: SNA, 3.5 kV, 480 A, 2 Pole, 12 AWG Wire, 0.374 in Wire Strip Length, Screw Clamp TE Connectivityrminal, 0.235 in Spacing, 0.5 N-m Torque, DIN Rail Mounting, -55 to 110 deg C, Polyamide, Green/ Yellow, 50 mm H x 6 mm W x 41 mm L Dimensions
1SNA165809R0100 Application
For Signal1SNA165809R0100 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA165809R0100 Standards
UL 94V-0|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #993411Part Number #1SNA165809R0100UNSPSC39121410UPC00662019960456
