XS518BLPAL2

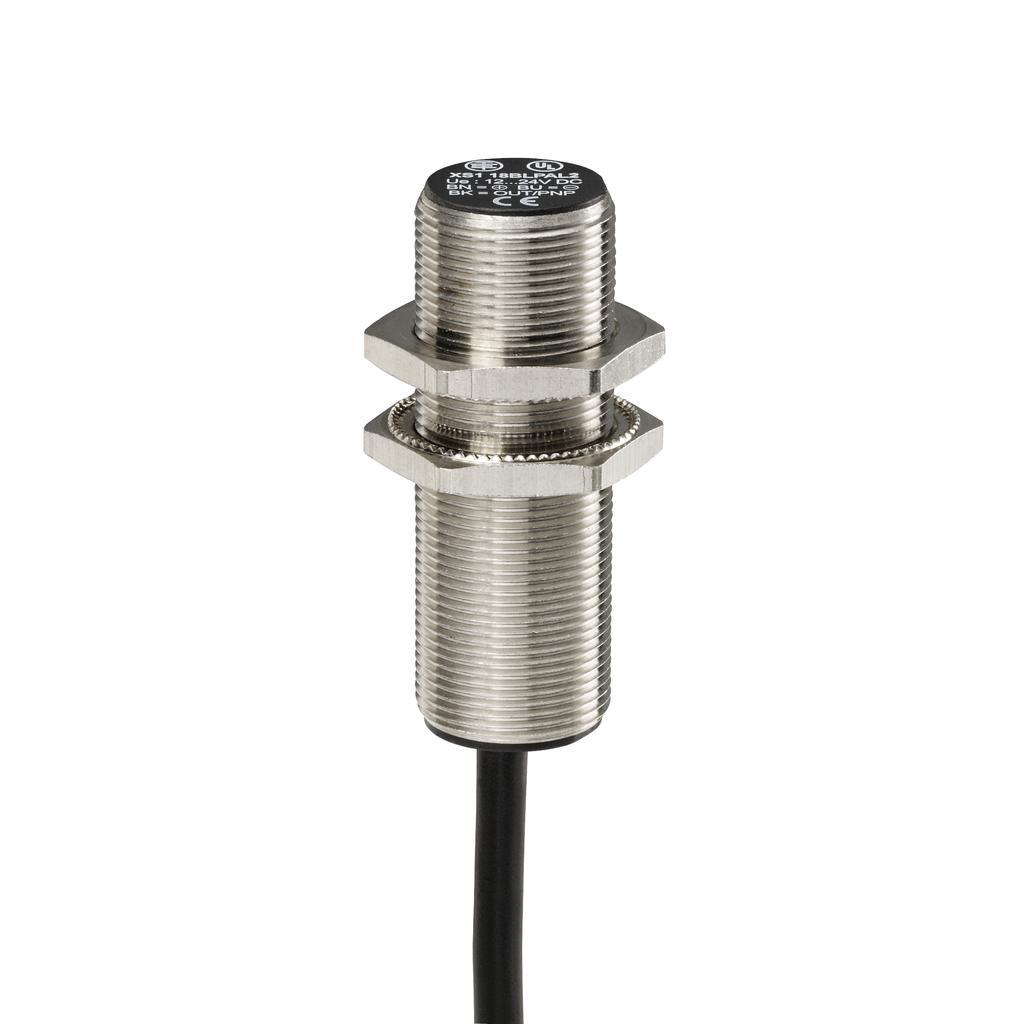

Telemecanique XS518BLPAL2 Proximity Switch
Part Number # XS518BLPAL2
SKU # 2428065
$93.22 / Each
Telemecanique XS518BLPAL2 Key Features
| Brand: | Telemecanique |
|---|---|
| Part Number # : | XS518BLPAL2 |
| SKU #: | 2428065 |
| Amperage Rating: | <=200 mA |
| Contact Configuration: | 1NO |
| Enclosure Type: | IP68/IP69K |
| Environmental Conditions: | -40 to 185 deg F Storage/50 gn Shock Resistance |
| Frequency Response: | <=2000 Hz |
| Interface: | 3-Wire |
| Response Time: | 0.15 ms |
| Sensing Distance: | 0.2 in |
| Sensing Method: | Inductive |
| Sensing Position: | Front |
| Series: | XS5 Series |
| Size: | 62 mm L x 18 mm H |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Type: | Cylindrical Fixed Form |
| Connection type: | 2 m Cable |
| Country of origin: | FR |
| Material: | Nickel Plated Brass |
| Mounting type: | Flush |
| Output type: | Discrete/PNP, PNP/Discrete |
| Manufacturer Name: | YAGEO Corporation |
| UNSPSC: | 39122230 |
| UPC: | 00785901894582 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$93.22 / Each
Quantity:
- Telemecanique OsiSense Proximity Sensor, Cylindrical Fixed Form, Series: XS5 Series, Inductive Sensing Method, 0.2 in Sensing Distance, Front Sensing Position, 10 Output, 1NO, 12 to 48 V DC, <=200 mA, <=2000 Hz, 2 m Cable, 0.15 ms Response, 3-Wire Interface, 62 mm L x 18 mm H, IP68/IP69K, -25 to 70 deg C, Flush Mount, Nickel Plated Brass, Environmental Conditions: -40 to 185 deg F Storage/50 gn Shock Resistance
XS518BLPAL2 Application
General purposeXS518BLPAL2 Item Features
- Tested for use in very harsh environments, beyond standard requirements
- Specifically, application tests conducted in an environment prone to interference, in the vicinity of variable speed drives or motors, demonstrated very good EMC immunity
- With reverse polarity protection
XS518BLPAL2 Standards
CSA Certified|CE Certified|RoHS Compliant|ECCN: EAR99|UL Listed|PROP65: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov|IEC 60068|IEC 60529|DIN 40050|IEC 60947-5-2|REACH CompliantSKU #2428065Part Number #XS518BLPAL2UNSPSC39122230UPC00785901894582
