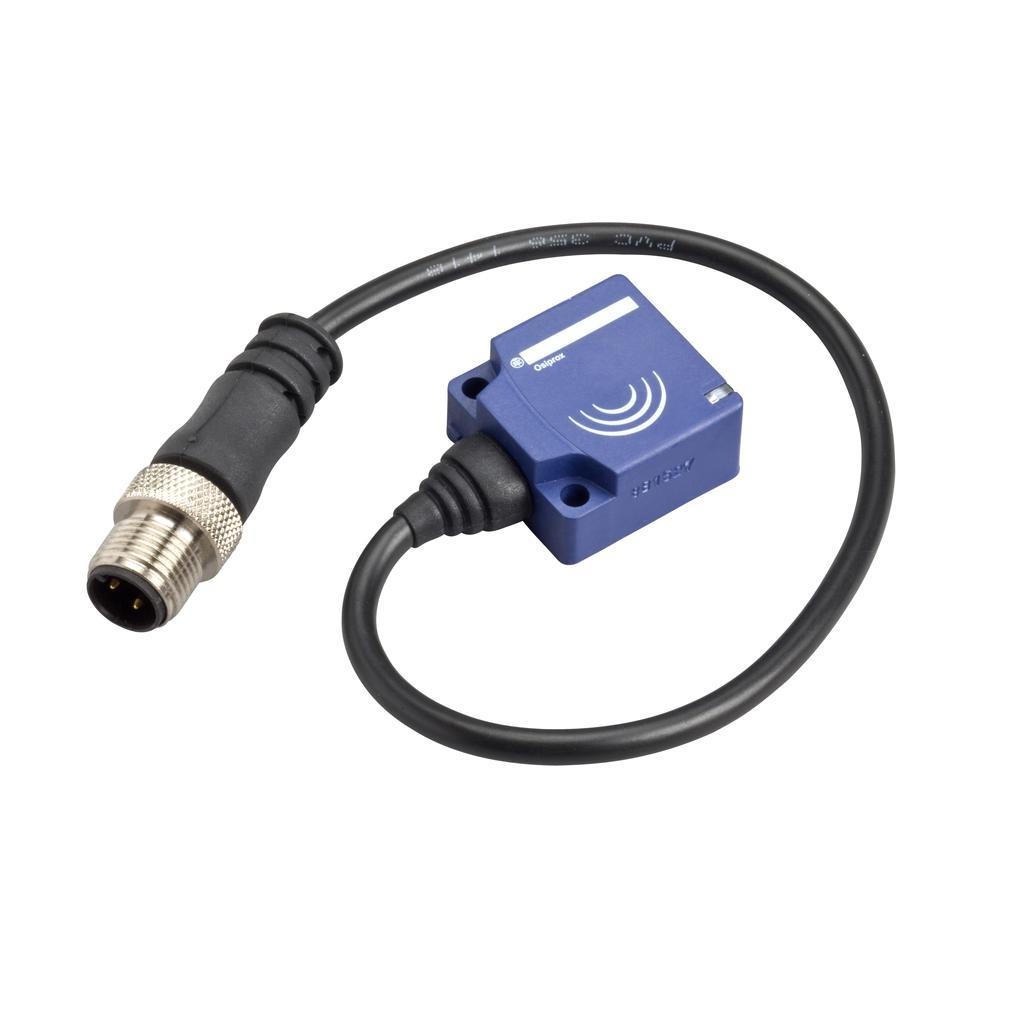

Telemecanique XS7E1A1PAL01M12 Osisense Proximity Sensor
Part Number # XS7E1A1PAL01M12
SKU # 2438720
$186.25 / Each
Telemecanique XS7E1A1PAL01M12 Key Features
| Brand: | Telemecanique |
|---|---|
| Part Number # : | XS7E1A1PAL01M12 |
| SKU #: | 2438720 |
| Amperage Rating: | <=100 mA |
| Contact Configuration: | 1NO |
| Environmental Conditions: | -40 to 185 deg F Storage/50 gn Shock Resistance |
| Frequency Response: | <=1000 Hz |
| Interface: | 3-Wire |
| Measuring Range: | 0.31 to 0.59 in |
| Response Time: | 2 ms |
| Sensing Method: | Inductive |
| Sensing Position: | Front |
| Series: | XS7 Series |
| Size: | 1.02 in W x 0.51 in D x 1.02 in H |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Type: | Fixed Flat Form |
| Connection type: | 4-Pin M12 Remote Male |
| Country of origin: | MX |
| Material: | PBT |
| Mounting type: | Flush |
| Output type: | Discrete/PNP, PNP/Discrete |
| Manufacturer Name: | YAGEO Corporation |
| UNSPSC: | 39122230 |
| UPC: | 00785901293330 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$186.25 / Each
Quantity:
- Telemecanique OsiSense Proximity Sensor, Fixed Flat Form, Series: XS7 Series, Inductive Sensing Method, 0.31 to 0.59 in, Front Sensing Position, 10 Output, 1NO, 12 to 24 V DC, <=100 mA, <=1000 Hz, 4-Pin M12 Remote Male, 2 ms Response, 3-Wire Interface, 1.02 in W x 0.51 in D x 1.02 in H, -25 to 70 deg C, Flush Mount, PBT, Environmental Conditions: -40 to 185 deg F Storage/50 gn Shock Resistance
XS7E1A1PAL01M12 Application
General purposeXS7E1A1PAL01M12 Item Features
- Tested for use in very harsh environments, beyond standard requirements
- Specifically, application tests conducted in an environment prone to interference, in the vicinity of variable speed drives or motors, demonstrated very good EMC immunity
- With reverse polarity protection
XS7E1A1PAL01M12 Standards
CSA Certified|CE Certified|C-Tick Certified|RoHS Compliant|ECCN: EAR99|UL Listed|PROP65: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov|IEC 60068|IEC 60529|Ecolab|IEC 60947-5-2|REACH CompliantSKU #2438720Part Number #XS7E1A1PAL01M12UNSPSC39122230UPC00785901293330
