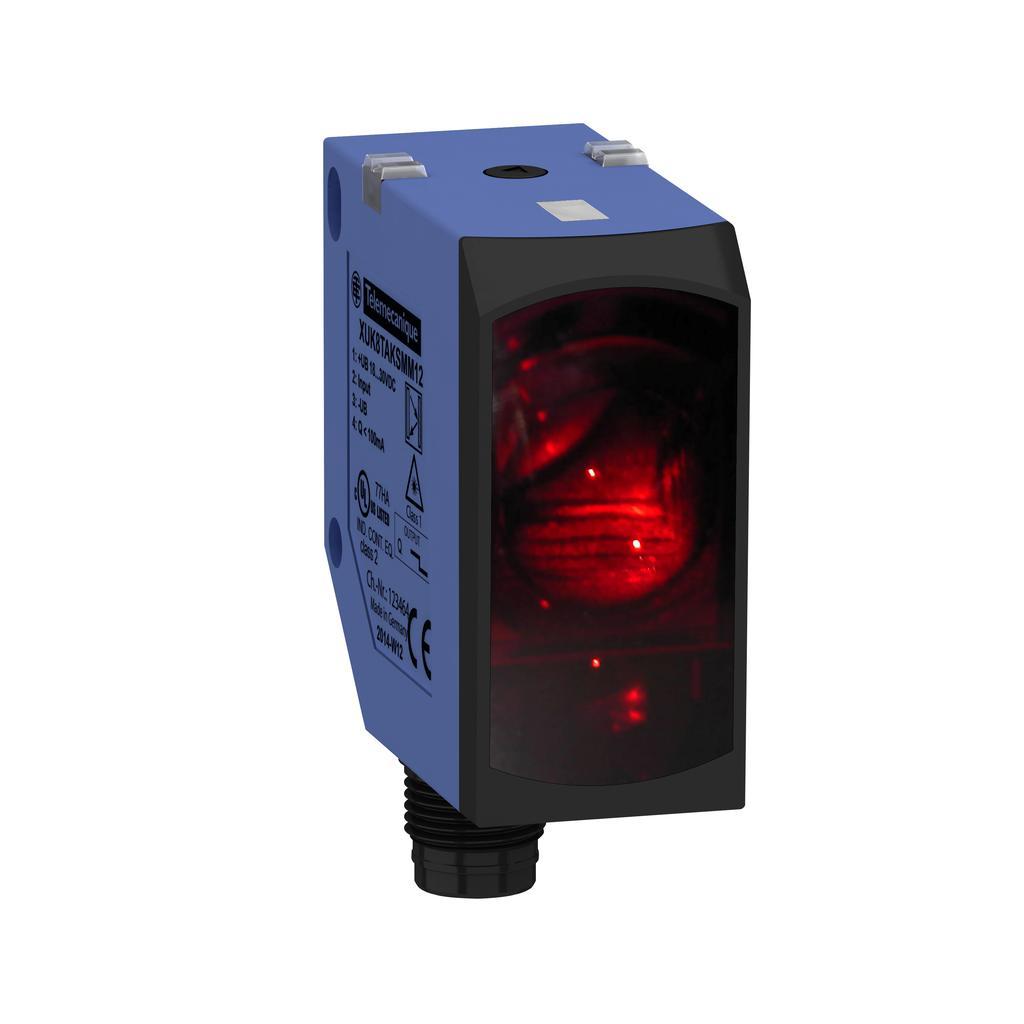

XUK8TAKSMM12
Telemecanique XUK8TAKSMM12, Series: XUK, Discrete Output, 24 VDC, 500 Hz Frequency, 7 gn +/- 1.5 mm (10 to 55 Hz) IEC 60068-2-6 Vibration, IP67/IP69 Enclosure, -4 to 122, -40 to 140 deg F Operating, Environmental Conditions: -40 to 176 deg F Storage Temperature, -4 to 122 deg F Operating Temperature
Part Number # XUK8TAKSMM12
SKU # 2320129
Telemecanique XUK8TAKSMM12 Key Features
| Brand: | Telemecanique |
|---|---|
| Part Number # : | XUK8TAKSMM12 |
| SKU #: | 2320129 |
| Enclosure Type: | IP67/IP69 |
| Environmental Conditions: | -40 to 176 deg F Storage Temperature, -4 to 122 deg F Operating Temperature |
| Frequency Rating: | 500 Hz |
| Operating Temperature: | -4 to 122, -40 to 140 deg F |
| Series: | XUK |
| Vibration: | 7 gn +/- 1.5 mm (10 to 55 Hz) IEC 60068-2-6 |
| Country of origin: | ID |
| Output type: | Discrete |
| Manufacturer Name: | YAGEO Corporation |
| UNSPSC: | 39121528 |
| UPC: | 03389119618052 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Telemecanique XUK8TAKSMM12, Series: XUK, Discrete Output, 24 VDC, 500 Hz Frequency, 7 gn +/- 1.5 mm (10 to 55 Hz) IEC 60068-2-6 Vibration, IP67/IP69 Enclosure, -4 to 122, -40 to 140 deg F Operating, Environmental Conditions: -40 to 176 deg F Storage Temperature, -4 to 122 deg F Operating Temperature
Brand: Telemecanique
Part Number: XUK8TAKSMM12
Telemecanique XUK8TAKSMM12, Series: XUK, Discrete Output, 24 VDC, 500 Hz Frequency, 7 gn +/- 1.5 mm (10 to 55 Hz) IEC 60068-2-6 Vibration, IP67/IP69 Enclosure, -4 to 122, -40 to 140 deg F Operating, Environmental Conditions: -40 to 176 deg F Storage Temperature, -4 to 122 deg F Operating Temperature
Additional Description: TELE-XUK8TAKSMM12 XUK8 TOF 1Q AUTO PNP/NPN IOL
Catalog Description: This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor in XUK compact 50mm x 50mm design. It has a diffuse with background suppression detection system. It supports 5m diffuse with background suppression nominal sensing distance and 1 normally opened or 1 normally closed programmable, PNP or NPN discrete type of output signal. It is furnished with 4-pin M12 male connector for electrical connection. It is an IP67 and IP69K rated product. This sensor has a rated supply voltage of 12V to 24V DC with reverse polarity protection, a no-load current consumption of ≤60mA and a switching frequency of ≤250Hz. It has red laser diffuse with background suppression class 1 emission. The enclosure is made of ABS/PC with PMMA lens. Its dimensions are 23mm (Width) x 50mm (Depth) x 50mm (Height) and weighs 0.035kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified
XUK8TAKSMM12 Application
For output state and supply on/output state, For material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries, For electrical connectionXUK8TAKSMM12 Item Features
- Photo-electric sensor electronic sensor type
- Diffuse with background suppression detection system
- Red laser diffuse with background suppression class 1 IEC 60825-1 emission
- PMMA lens material
- 16.40 ft 5 m diffuse with background suppression maximum sensing distance
- External teach add on input
- PVC wire insulation material
- <= 100 mA overload and short-circuit protection switching capacity in ma
- 300 ms maximum delay first up
- Using teach button or remote teaching setting-up
XUK8TAKSMM12 Standards
EcolabCE|CULus|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2320129Part Number #XUK8TAKSMM12UNSPSC39121528UPC03389119618052
