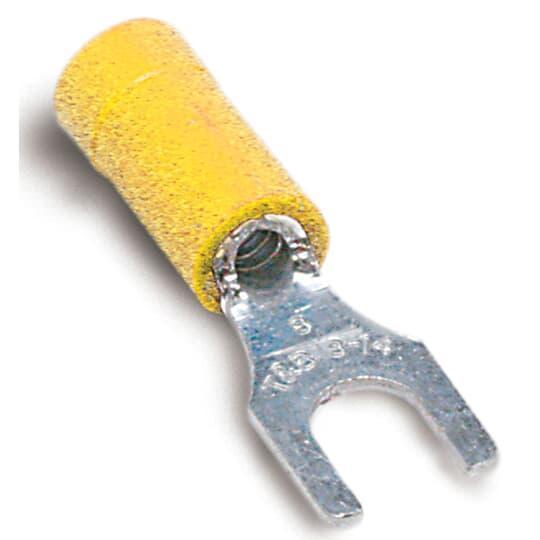

Thomas & Betts 10RC-10FCP Sta-Kon Fork Terminal
Thomas & Betts 10RC-10FCP Sta-Kon Fork Terminal
Part #:10RC-10FCP
SKU #: 2195621
Key Features
Part #:10RC-10FCP
SKU #: 2195621
Brand: Thomas & Betts
Barrel Type: Brazed Seam/Serrated
Conductor Size: 12 to 10, 12 to 10 AWG
Finish: Electroplated Tin
Series: RC Series
Specifications: 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation
- Fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire flex point
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
- Mini pack
Thomas & Betts 10RC-10FCP Sta-Kon Fork Terminal
Sta-Kon Fork Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, #10 Stud, 1.09 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.38 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Yellow
Additional Description: TB -10RC-10FCP INS VINYL FORK TRM 12-10 BLT No10 YELLOW
Catalog Description: Vinyl-Insulated Fork Terminal, Length 1.09 Inches, Width .38 Inches, Maximum Insulation .210, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, Mini-Pack
