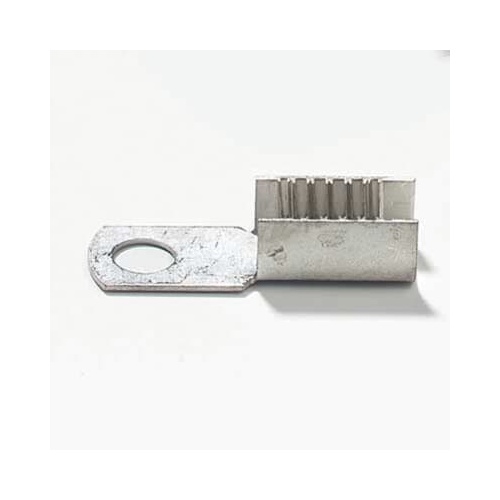

Thomas & Betts 22R146 Sta-Kon Ring Terminal
Part Number # 22R146
SKU # 2240319
Thomas & Betts 22R146 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 22R146 |
| SKU #: | 2240319 |
| Barrel Size: | 0.45 in L x 0.25 in W |
| Conductor Size: | 16 to 12 AWG |
| Conductor Type: | Aluminum/Copper |
| Finish: | Tin Plated |
| Specifications: | 0.05 to 0.08 in THK, 2580 to 12330 kcmil |
| Tongue Size: | 0.42 in W |
| Tongue Type: | Ring |
| Type: | Insulation Piercing Magnet Wire |
| Country of origin: | US |
| Length: | 0.95 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210890012 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 22R146 Sta-Kon Ring Terminal
Brand: Thomas & Betts
Part Number: 22R146
Dragon Tooth Ring Terminal, Insulation Piercing Magnet Wire, Aluminum/Copper Conductor, 16 to 12 AWG Conductor, 1/4 in Stud, 0.95 in Length, 0.45 in L x 0.25 in W Barrel, Ring Tongue, 0.42 in W Tongue, Specifications: 0.05 to 0.08 in THK, 2580 to 12330 kcmil, Copper, Tin Plated
Additional Description: TB -22R146 (N) RING TERM CU 16-12 AWG 1/4 STUD .25 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Insulation Piercing Magnet Wire Ring Terminal, Length .95 Inches, Width .42 Inches, Length of Teeth .45 Inches, Width of Teeth .25 Inches, Stud Size 1/4 Inch, Wire Range #16 AWG - #12 AWG 2,580 Circular Mil Area - 12,330 Circular Mil Area, Copper Alloy, Tin Plated
22R146 Application
For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections22R146 Includes
Male and Female 0.25 x 0.032 in Disconnect22R146 Item Features
- Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire
- Can be installed in seconds
- Requires minimal training for installation
- Supplied with bolt holes to accommodate #6 through 1/2 in studs
22R146 Standards
UL File No. E9809SKU #2240319Part Number #22R146UNSPSC39121432UPC00786210890012
