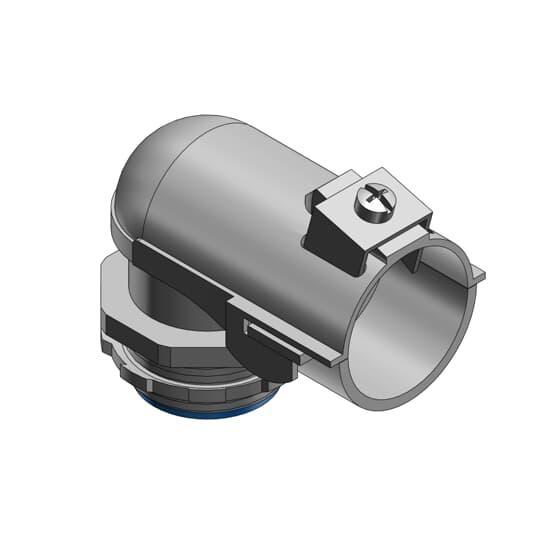

Thomas & Betts 3138 Tite-Bite Cable Angle Connector
Part Number # 3138
SKU # 2275861
$260.84 / 5Each
Typical price:$349.52 / Each
Thomas & Betts 3138 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 3138 |
| SKU #: | 2275861 |
| Angle: | 90, 90 deg |
| Cable Openings: | 1.562 to 1.75, 1.562 to 1.75 in |
| Dimensions: | 3-5/16 in H |
| Finish: | Electro-Plated Zinc, Electro-Zinc Plated |
| Knockout Size: | 1-1/4, 1-1/4 in |
| Number of Conductors: | 1 |
| Trade Size: | 1-1/2, 1-1/2 in |
| Cable type: | AC/FMC |
| Color: | Metallic |
| Connection type: | Angled Saddle/Threaded, Threaded/Angled Saddle |
| Country of origin: | US |
| Material: | Malleable Iron |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121419 |
| UPC: | 00786210031385 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$260.84 / 5Each
Typical price:$349.52 / Each
Quantity:
- T&B Tite-Bite Cable Angle Connector, 1-1/2 in, 1-1/4 in Knockout, Cable Openings: 1.562 to 1.75 in, 1 Conductors, AC/FMC Cable, Angled Saddle/Threaded, 90 deg, Malleable Iron, Electro-Zinc Plated, Metallic, 3-5/16 in H
3138 Application
For armored cable and flexible metal conduit3138 Item Features
- By far the easiest and best to install when making sharp bends at the enclosure or equipments
- All the advantages of the straight connector with only one screw to tighten, except in the larger sizes where there are two
- To connect and effectively bond armored cable or flexible metal conduit to a box or an enclosure
- Single cable opening
- Narrow design makes it easy to install connectors in adjacent knockouts
- Nylon insulated
- A peep hole on top provides for easy inspection of the ABC bushing
- 1-screw connection
3138 Standards
CSA 2884|UL File No. E23018/E1383SKU #2275861Part Number #3138UNSPSC39121419UPC00786210031385
