350HPS

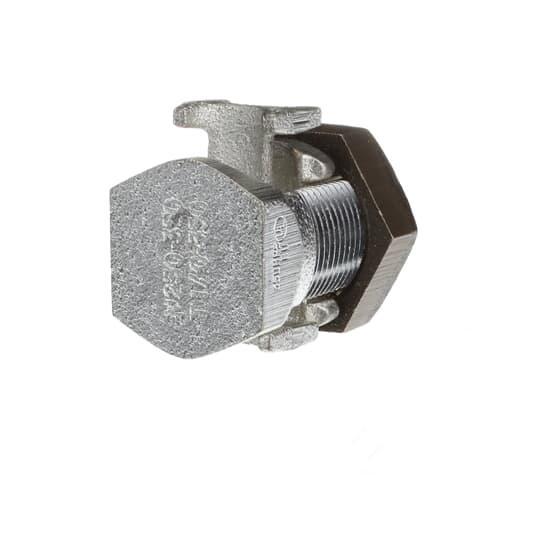

Thomas & Betts 350HPS Blackburn Split Bolt Connector
Part Number # 350HPS
SKU # 2353361
Thomas & Betts 350HPS Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 350HPS |
| SKU #: | 2353361 |
| Conductor Size: | 1/0 AWG to 350 kcmil |
| Conductor Type: | ACSR/Solid/Stranded Aluminum/Copper |
| Finish: | Electro-Plated Tin |
| Specifications: | 0.717 in Split, 1-21/32 in Hex Nut |
| Type: | Type HPS |
| Color: | Metallic |
| Country of origin: | MX |
| Material: | Copper Alloy |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121408 |
| UPC: | 00783786855087 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 350HPS Blackburn Split Bolt Connector
Brand: Thomas & Betts
Part Number: 350HPS
Blackburn Split Bolt Connector, Type HPS, ACSR/Solid/Stranded Aluminum/Copper Conductor, 1/0 AWG to 350 kcmil Conductor, 1-5/16 x 2-11/16 in Bolt, 0.717 in Split, 1-21/32 in Hex Nut, Copper Alloy, Electro-Plated Tin, Metallic
Additional Description: TB -350HPS HSTRNGTH SPLITBOLT CONN 266.8-1/0
Catalog Description: Type HPS - Split-Bolt Connector with Spacer, Conductor Range for Equal Main and Tap ACSR 266.8-1/0, Conductor Range for Equal Main and Tap 350 kcmil-1/0 Str, Min Tap with One Max Main 2 Sol, Tin Plated
350HPS Application
For splicing, tapping or terminating conductors in power and grounding electrical connection350HPS Item Features
- Bolt and pressure bar of copper alloy, completely tin plated for corrosion resistance
- Contoured spacer of bronze alloy copper
- Tin plated finish provides resistance to corrosion
- Blackburn contax recommended when used on aluminum conductors
- 266.8 kcmil to 1/0 AWG for ACSR conductor range equal main and tap
- 2 AWG solid conductor range min tap with one max main
- 350 kcmil to 1/0 stranded conductor range for equal main and tap
- 1 Piece/Pack
350HPS Standards
UL File No. E9809|CSA CertifiedSKU #2353361Part Number #350HPSUNSPSC39121408UPC00783786855087
