Brand: Thomas & Betts

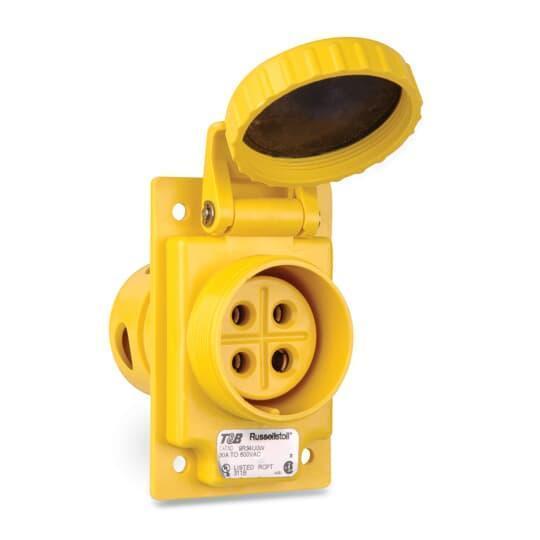

Thomas & Betts 9R34U0W Russellstoll DuraGard Pin and Sleeve Receptacle
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts 9R34U0W Russellstoll DuraGard Pin and Sleeve Receptacle
Brand: Thomas & Betts
Thomas & Betts 9R34U0W Russellstoll DuraGard Pin and Sleeve Receptacle
Part #:9R34U0W
SKU #: 2348760
$367.31/EA
Key Features
Part #:9R34U0W
SKU #: 2348760
Brand: Thomas & Betts
Amperage Rating: 30, 30 A
Dimensions: 4.14 in H x 2.66 in W x 4.12 in D
Frequency Rating: 60, 60 Hz
Number of Poles: 3
Number of Wires: 4
$367.31/EA
- Not just "watertight" waterproof for washdown duty (DurORing Sealing) that eliminates the need for costly "weather boots" or "adapters"
- DuraV high impact body and collars, thermoset interior
- DuraGard waterproof connections
- For use where electrical connections need protection from water and/or dust entrance to the contacts or the wiring compartment
- For washdown and light marine applications watertight/waterproof such as food processing plants, bottling and beverage plants, pulp and paper factories, pharmaceutical manufacturing, barge and workboat applications and outdoor construction sites
- For use with computer systems data center and OEM products such as raised floor applications, main power connections and critical power for test, instrumentation, telephone and medical equipment
- Computer system interconnections
- 3/4 in ID bushing
Specifications
Brand: Thomas & Betts
Amperage Rating: 30, 30 A
Dimensions: 4.14 in H x 2.66 in W x 4.12 in D
Frequency Rating: 60, 60 Hz
Number of Poles: 3
Number of Wires: 4
Temperature Rating (Degrees F): -40 to 203, -40 to 203 deg F
Terminal Type: Screw
Type: Female Watertight Waterproof
Voltage Rating: 600 VAC, 250 VDC, 600 VAC/250 VDC
Country of origin: MX
Material: DuraV, DuraV®
Manufacturer Name: ABB
UNSPSC: 39121406
UPC: 00708917148999
Thomas & Betts 9R34U0W Russellstoll DuraGard Pin and Sleeve Receptacle
Russellstoll DuraGard Pin and Sleeve Receptacle, Female Watertight Waterproof, 600 VAC, 250 VDC, 30 A, 60 Hz Frequency, 3 Pole, 4 Wires, -40 to 203 deg F, Screw Terminal, DuraV , 4.14 in H x 2.66 in W x 4.12 in D Dimensions
Additional Description: TB -9R34U0W 30A,REC,3P4W,DG,U0,600V,SC
Catalog Description: DuraGard 30 Amp, Watertight, Female Receptacle- through 600V AC/250V DC
Item FeaturesFor use where electrical connections need protection from water and/or dust entrance to the contacts or the wiring compartment
Item Features
