Part Number # ADR35-12
SKU # 150239
Image Disclaimers Message
ADR35-12

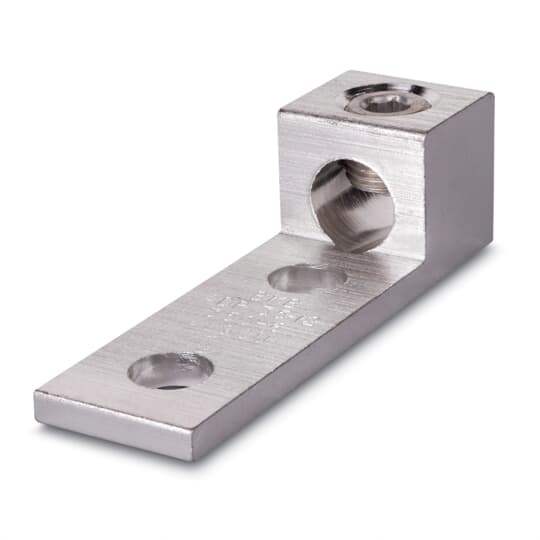

Thomas & Betts ADR35-12 Blackburn Mechanical Connector
Part Number # ADR35-12
SKU # 150239
Thomas & Betts ADR35-12 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | ADR35-12 |
| SKU #: | 150239 |
| Conductor Size: | 6 AWG to 350 kcmil |
| Conductor Type: | Aluminum/Stranded Copper |
| Dimensions: | 4-1/4 in L x 1-1/4 in W x 1-3/8 in H |
| Finish: | TiN Coated |
| Specifications: | 1-Conductor, 1-3/4 in Hole Spacing |
| Tongue Size: | 3 in L x 1-1/4 in W x 5/16 in THK |
| Tongue Type: | Straight |
| Type: | Type ADR-ALCUL Dual Rated |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121408 |
| UPC: | 00783786610204 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts ADR35-12 Blackburn Mechanical Connector
Brand: Thomas & Betts
Part Number: ADR35-12
Blackburn Mechanical Connector, Type ADR-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 6 AWG to 350 kcmil Conductor, 1/2 in Stud, 2 Bolt Holes, 3 in L x 1-1/4 in W x 5/16 in THK Tongue, Straight Tongue, 1-Conductor, 1-3/4 in Hole Spacing, Aluminum, Tin Coated, 4-1/4 in L x 1-1/4 in W x 1-3/8 in H
Additional Description: TB -ADR35-12 AL 1CNDTR 2HOLE MOUNT 6-350STR TP
Catalog Description: Type ADR-ALCUL Single-Conductor, Two-Hole Mount for Conductor Range Max 350 kcmil, Min 6 Str, 1/2 Inch Bolt Hole, NEMA Spacing 1-3/4 Inch Centers, Length 4-1/4 Inch, Tin Plated
ADR35-12 Item Features
- Easy installation - no special tools required
- NEMA spacing 1-3/4 in centers
- Extra aluminum lug
- Tin plated for low contact resistance
- 2 stud of 1/2 in
ADR35-12 Standards
UL File No. E9809SKU #150239Part Number #ADR35-12UNSPSC39121408UPC00783786610204
