ADR50-32

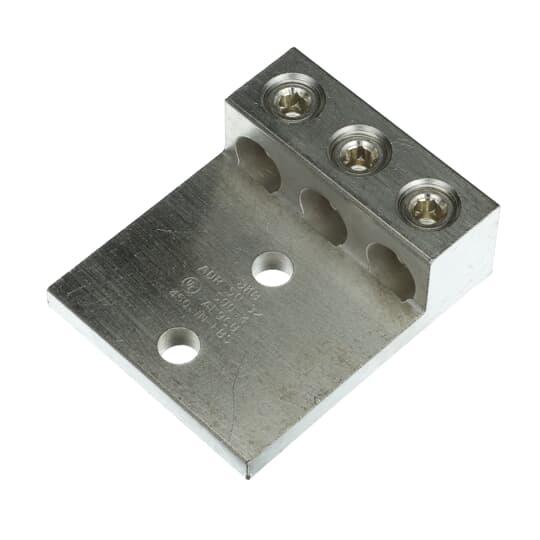

Thomas & Betts ADR50-32 Blackburn Mechanical Connector
Part Number # ADR50-32
SKU # 2195140
Thomas & Betts ADR50-32 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | ADR50-32 |
| SKU #: | 2195140 |
| Conductor Size: | 4 AWG to 500 kcmil |
| Conductor Type: | Aluminum/Stranded Copper |
| Dimensions: | 4-11/16 in L x 3-3/4 in W x 1-9/16 in H |
| Finish: | TiN Coated |
| Specifications: | 3-Conductor, 1-1/4 in Hole Spacing |
| Tongue Size: | 3-5/16 in L x 3-3/4 in W x 7/16 in THK |
| Tongue Type: | Straight |
| Type: | Type ADR-ALCUL Dual Rated |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121408 |
| UPC: | 00783786610297 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts ADR50-32 Blackburn Mechanical Connector
Brand: Thomas & Betts
Part Number: ADR50-32
Blackburn Mechanical Connector, Type ADR-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 4 AWG to 500 kcmil Conductor, 1/2 in Stud, 2 Bolt Holes, 3-5/16 in L x 3-3/4 in W x 7/16 in THK Tongue, Straight Tongue, 3-Conductor, 1-1/4 in Hole Spacing, Aluminum, Tin Coated, 4-11/16 in L x 3-3/4 in W x 1-9/16 in H
Additional Description: TB -ADR50-32 AL TP 3CNDTR 2HOLE MOUNT 4-500STR
Catalog Description: Type ADR-ALCUL Three-Conductor, Two-Hole Mount for Conductor Range Max 500 kcmil, Min 4 Str, 1/2 Inch Bolt Hole, NEMA Spacing 1-3/4 Inch Centers, Length 4-11/16 Inch, Tin Plated
ADR50-32 Item Features
- Easy installation - no special tools required
- NEMA spacing 1-3/4 in centers
- Connectors accommodating conductors 600 kcmil and larger have double rows of set screws
- Extra aluminum lug
- Tin plated for low contact resistance
- 2 stud of 1/2 in
ADR50-32 Standards
UL E9809SKU #2195140Part Number #ADR50-32UNSPSC39121408UPC00783786610297
