Part Number # ADR60-22D
SKU # 931108
ADR60-22D

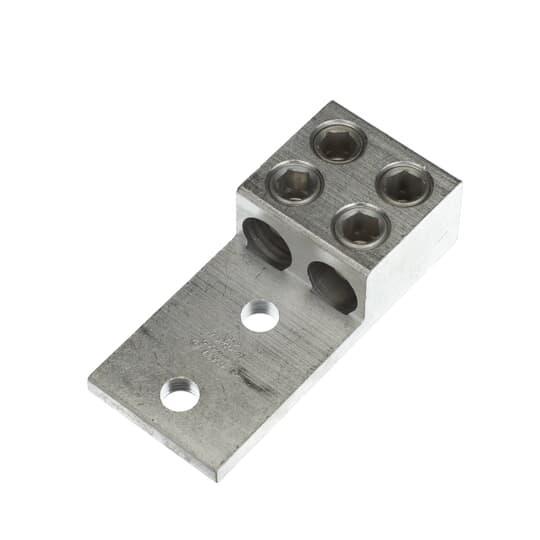

Thomas & Betts ADR60-22D Blackburn Mechanical Connector
Part Number # ADR60-22D
SKU # 931108
Thomas & Betts ADR60-22D Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | ADR60-22D |
| SKU #: | 931108 |
| Conductor Size: | 2 AWG to 600 kcmil |
| Conductor Type: | Aluminum/Stranded Copper |
| Dimensions: | 5-5/16 in L x 2-3/4 in W x 1-1/2 in H |
| Finish: | TiN Coated |
| Specifications: | 2-Conductor, 1-7/16 in Hole Spacing |
| Tongue Size: | 1-13/16 in L x 2-3/4 in W x 3/8 in THK |
| Tongue Type: | Straight |
| Type: | Type ADR-ALCUL Dual Rated |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121408 |
| UPC: | 00783786610341 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts ADR60-22D Blackburn Mechanical Connector
Brand: Thomas & Betts
Part Number: ADR60-22D
Blackburn Mechanical Connector, Type ADR-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 2 AWG to 600 kcmil Conductor, 1/2 in Stud, 2 Bolt Holes, 1-13/16 in L x 2-3/4 in W x 3/8 in THK Tongue, Straight Tongue, 2-Conductor, 1-7/16 in Hole Spacing, Aluminum, Tin Coated, 5-5/16 in L x 2-3/4 in W x 1-1/2 in H
Additional Description: TB -ADR60-22D AL TP 2CNDTR 2HOLE MOUNT 2-600 1/2B
Catalog Description: Type ADR-ALCUL Two-Conductor, Two-Hole Mount, Conductor Range 2 Str-600 kcmil, Length 5-5/16 Inches, Width 2-3/4 Inches, Height 1-1/2 Inches, 1/2 Inch Bolt Hole, 1-3/4 Inch Centers, Tin Plated
ADR60-22D Item Features
- Easy installation - no special tools required
- NEMA spacing 1-3/4 in centers
- Connectors accommodating conductors 600 kcmil and larger have double rows of set screws
- Extra aluminum lug
- Tin plated for low contact resistance
- 2 stud of 1/2 in
ADR60-22D Standards
UL E9809SKU #931108Part Number #ADR60-22DUNSPSC39121408UPC00783786610341
Image provided may only be a representation of final product and may include optional equipment
