Part Number # ASL75-22
SKU # 2235800
ASL75-22

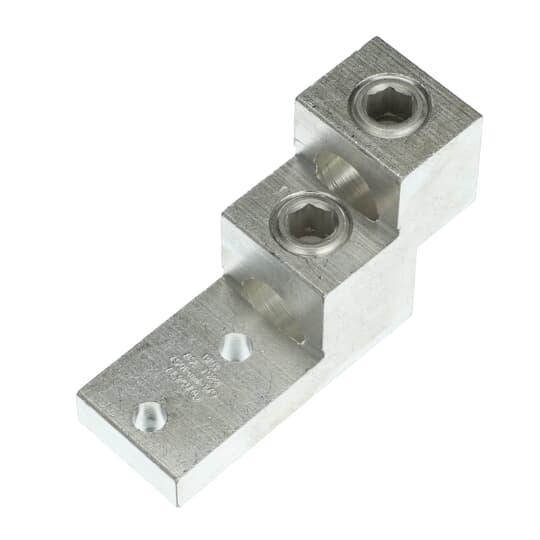

Thomas & Betts ASL75-22 Blackburn Mechanical Connector
Part Number # ASL75-22
SKU # 2235800
Thomas & Betts ASL75-22 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | ASL75-22 |
| SKU #: | 2235800 |
| Conductor Size: | 1/0 AWG to 750 kcmil |
| Conductor Type: | Aluminum/Stranded Copper |
| Dimensions: | 4-29/32 in L x 1-1/2 in W x 3 in H |
| Finish: | TiN Coated |
| Specifications: | 2-Conductor |
| Tongue Size: | 1-1/2 in W x 3/4 in THK |
| Tongue Type: | Straight |
| Type: | Type ASL-ALCUL Dual Rated |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121408 |
| UPC: | 00783786133185 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts ASL75-22 Blackburn Mechanical Connector
Brand: Thomas & Betts
Part Number: ASL75-22
Blackburn Mechanical Connector, Type ASL-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 1/0 AWG to 750 kcmil Conductor, 13/32 in Stud, 2 Bolt Holes, 1-1/2 in W x 3/4 in THK Tongue, Straight Tongue, Specifications: 2-Conductor, Aluminum, Tin Coated, 4-29/32 in L x 1-1/2 in W x 3 in H Dimensions
Additional Description: TB -ASL75-22 AL 2CNDTR 2HOLE MOUNT 1/0STR-750
Catalog Description: Type ASL-ALCUL Two-Conductor, Two-Hole Mount for Conductor Range Max 750 kcmil, Min 1/0 Str.
ASL75-22 Item Features
- Easy installation - no special tools required
- Tin plated for low contact resistance
- 2 stud of 13/32 in
ASL75-22 Standards
UL E9809SKU #2235800Part Number #ASL75-22UNSPSC39121408UPC00783786133185
Image provided may only be a representation of final product and may include optional equipment
