CPC150SS6

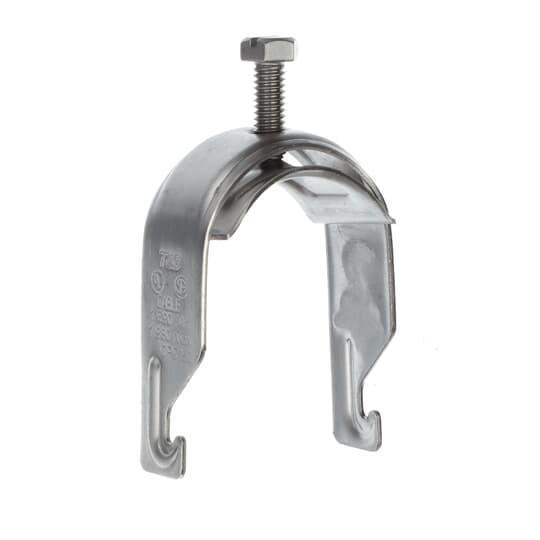

Thomas & Betts CPC150SS6 Superstrut Cobra Conduit and Cable Clamp
Part Number # CPC150SS6
SKU # 2226607
Thomas & Betts CPC150SS6 Key Features
Brand: | Thomas & Betts |
---|---|
Part Number # : | CPC150SS6 |
SKU #: | 2226607 |
Conduit Size: | 1-1/2, 1-1/2 in |
Dimensions: | 1 in W |
Load Capacity: | 200, 200 lb |
Outside Diameter: | 1.69 to 1.98, 1.69 to 1.98 in |
Series: | 700 |
Specifications: | 35 ft-lb Torque |
Suitable For Use With: | EMT, Rigid Conduit and Cable |
Thickness: | 0.112, 0.112 in |
Type: | 1-Piece 1-Hole |
Country of origin: | IN |
Material: | 316 Stainless Steel |
Mounting type: | Parallel Hook |
Manufacturer Name: | ABB |
UNSPSC: | 31162906 |
UPC: | 00616013107072 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts CPC150SS6 Superstrut Cobra Conduit and Cable Clamp
Brand: Thomas & Betts
Part Number: CPC150SS6
Superstrut Cobra Conduit and Cable Clamp, 1-Piece 1-Hole, Series: 700, 1-1/2 in Conduit, 200 lb Load, 1.69 to 1.98 in OD, 0.112 in Thickness, Parallel Hook Mounting, For Use With: EMT, Rigid Conduit and Cable, Specifications: 35 ft-lb Torque, 316 Stainless Steel, 1 in W Dimensions
Additional Description: TB -CPC150SS6 (N) 1-PIECE CBL/PIPE CLP 1-1/2IN 316SS NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Clamp, One-Piece Cable and Pipe, EMT and Rigid Conduit Trade Size 1-1/2 Inches, Cable Outer Diameter Range 1.690-1.980 Inches, Type 316 Stainless Steel
CPC150SS6 Application
For attaching a full range of rigid/EMT conduit and cable to strut channelsCPC150SS6 Item Features
- 1-piece, heavy duty construction ready-to install right out of the box, no need to break-apart and reassemble, no screws or bolts to drop
- Heavy duty 5/16 in hex bolt with multi-driver head (Robertson square, Philips cross-recess and slot) provides a full range of installation options
- Reconfigure wiring without complete disassembly
- Remove cables easily without disturbing neighboring clamps
- Parallel hook design keeps conduits and cable square with strut
- Works with all depth of strut 13/16 to 3-1/4 in
- 2 hooks on the same side make the clamp easy-to install and keep conduits and cable square with strut
- Rugged stirrup and wide saddle design holds securely with no damage to conduit or cable
- Stainless steel bolt head is hexagonal and slotted only
CPC150SS6 Standards
CSA Certified|UL File No. E160899SKU #2226607Part Number #CPC150SS6UNSPSC31162906UPC00616013107072
