Part Number # CPC200SS6
SKU # 2226610
Image Disclaimers Message
CPC200SS6

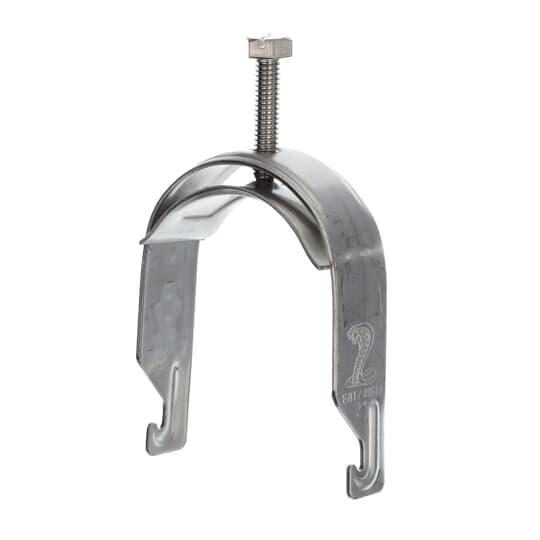

Thomas & Betts CPC200SS6 Superstrut Cobra Conduit and Cable Clamp
Part Number # CPC200SS6
SKU # 2226610
Thomas & Betts CPC200SS6 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | CPC200SS6 |
| SKU #: | 2226610 |
| Conduit Size: | 2, 2 in |
| Load Capacity: | 200, 200 lb |
| Outside Diameter: | 1.98 to 2.576, 1.98 to 2.576 in |
| Series: | 700 |
| Specifications: | 35 ft-lb Torque |
| Suitable For Use With: | EMT, Rigid Conduit and Cable |
| Type: | 1-Piece |
| Country of origin: | IN |
| Material: | 316 Stainless Steel |
| Mounting type: | Parallel Hook |
| Manufacturer Name: | ABB |
| UNSPSC: | 31162906 |
| UPC: | 00616013107096 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts CPC200SS6 Superstrut Cobra Conduit and Cable Clamp
Brand: Thomas & Betts
Part Number: CPC200SS6
Superstrut Cobra Conduit and Cable Clamp, 1-Piece, Series: 700, 2 in Conduit, 200 lb Load, 1.98 to 2.576 in OD, Parallel Hook Mounting, For Use With: EMT, Rigid Conduit and Cable, Specifications: 35 ft-lb Torque, 316 Stainless Steel
Additional Description: TB -CPC200SS6 (N) 1-PIECE CBL/PIPE CLP 2IN 316SS NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Clamp, One-Piece Cable and Pipe, EMT and Rigid Conduit Trade Size 2 Inches, Cable Outer Diameter Range 1.980-2.576 Inches, Type 316 Stainless Steel
CPC200SS6 Application
For attaching a full range of rigid/EMT conduit and cable to strut channelsCPC200SS6 Item Features
- 1-piece, heavy duty construction ready-to install right out of the box, no need to break-apart and reassemble, no screws or bolts to drop
- Heavy duty 5/16 in hex bolt with multi-driver head (Robertson square, Philips cross-recess and slot) provides a full range of installation options
- Reconfigure wiring without complete disassembly
- Remove cables easily without disturbing neighboring clamps
- Parallel hook design keeps conduits and cable square with strut
- Works with all depth of strut 13/16 to 3-1/4 in
- 2 hooks on the same side make the clamp easy-to install and keep conduits and cable square with strut
- Rugged stirrup and wide saddle design holds securely with no damage to conduit or cable
- Stainless steel bolt head is hexagonal and slotted only
CPC200SS6 Standards
UL File No. E160899|CSA CertifiedSKU #2226610Part Number #CPC200SS6UNSPSC31162906UPC00616013107096
