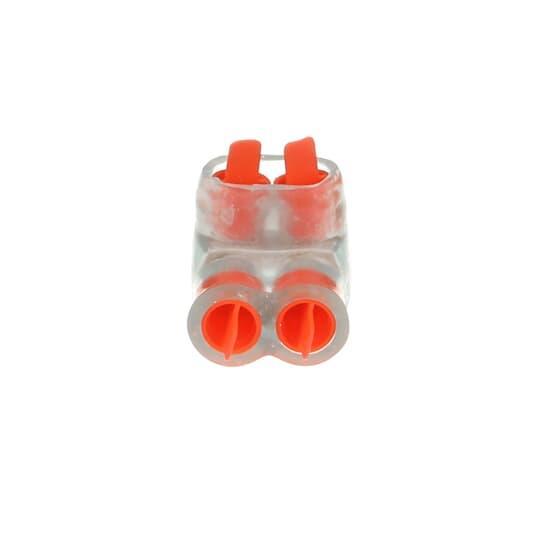

Thomas & Betts CSB4-2S Blackburn Multi-Tap Cable Block
Image Disclaimers Message
Thomas & Betts CSB4-2S Blackburn Multi-Tap Cable Block
Thomas & Betts CSB4-2S Blackburn Multi-Tap Cable Block
Part #:CSB4-2S
SKU #: 2267659
Key Features
Part #:CSB4-2S
SKU #: 2267659
Brand: Thomas & Betts
Conductor Type: Aluminum/Copper/Stranded, Stranded Aluminum/Copper
Dimensions: 1.15 in L x 1.25 in W x 1.25 in H
Series: CSB
Specifications: 14 to 4 AWG Wire, Clear Color, 14 to 4 AWG Wire, Clear PVC Insulation
Temperature Rating (Degrees F): 90, 90 deg C
- Versatile design
- Clear PVC insulation and safe and time-saving installation with no taping required
- Quick and easy to install in the field
- Dual rated for use with aluminum and copper conductors
- Slotted screw
- Wide range of cable sizes and number of outlets available in 1-way configurations
- Above ground pedestal connectors and covers
Thomas & Betts CSB4-2S Blackburn Multi-Tap Cable Block
Homac Multi-Tap Cable Block, 1-Way 2-Outlet Dual Rated Encapsulated, Series: CSB, Stranded Aluminum/Copper Conductor, 600 VAC, Specifications: 14 to 4 AWG Wire, Clear PVC Insulation, 90 deg C, Aluminum, 1.15 in L x 1.25 in W x 1.25 in H
Additional Description: TB -CSB4-2S INSUL.MULTI PORT BAR No4AWG, 2-POS
Catalog Description: Aluminum Multi-Tap Encapsulated Cable Blocks - One-Way Configuration, Wire Range 4-14 Str, Screw Size Slotted, Length 1.15 Inches, Width 1.25 Inches, Height 1.25 Inches, Outlets 2, Clear Insulation
