Part Number # T37CG-TB
SKU # 2147517
Image Disclaimers Message
T37CG-TB

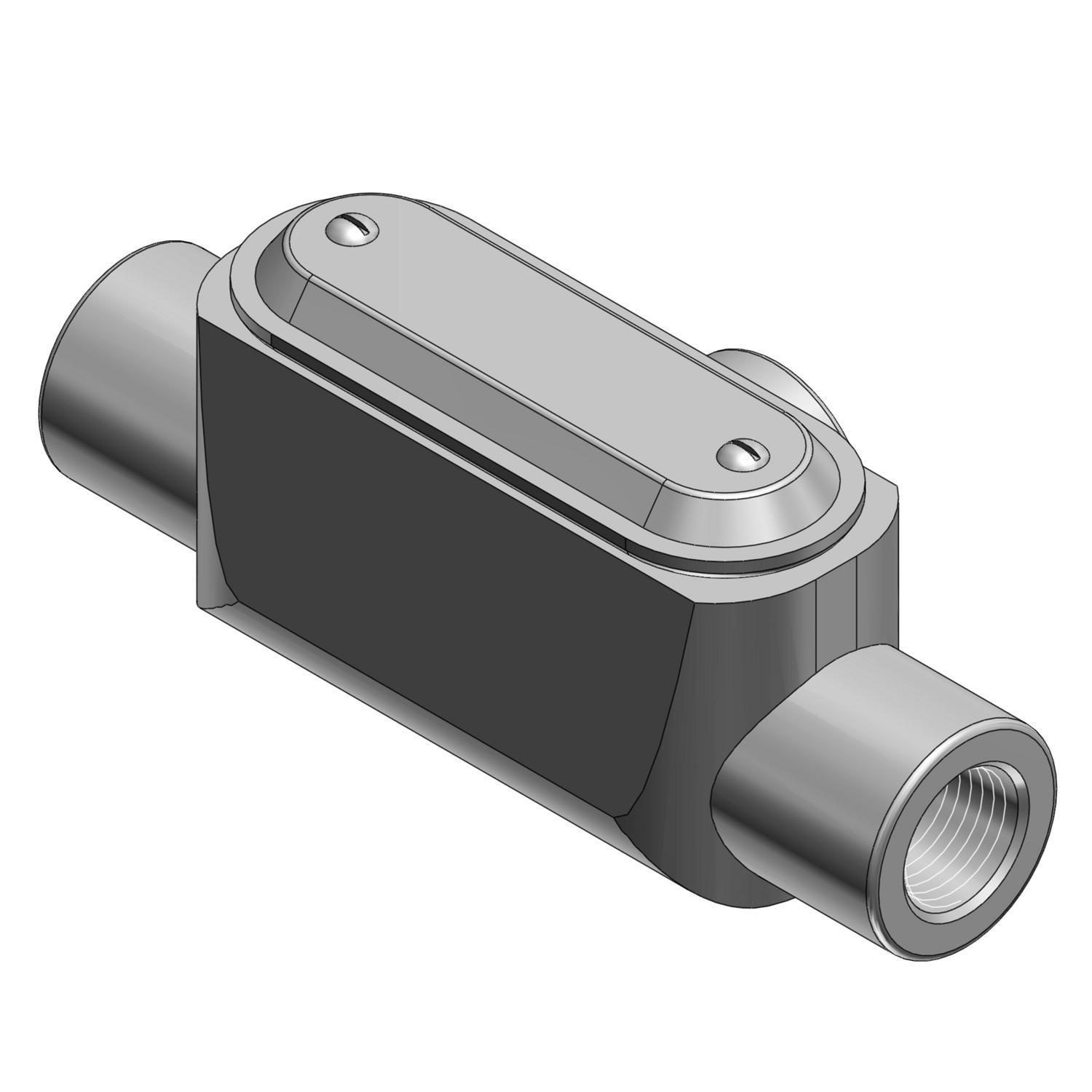

Thomas & Betts T37CG-TB BlueKote Conduit Body
Part Number # T37CG-TB
SKU # 2147517
Thomas & Betts T37CG-TB Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | T37CG-TB |
| SKU #: | 2147517 |
| Capacity: | 16.9, 16.9 cu-in |
| Dimensions: | 7.35 in L x 4.55 in W x 3.1 in H |
| Finish: | Epoxy Powder Coated/Zinc Plated |
| Form: | Form 7 |
| Hub Size: | 1, 1 in |
| Type: | Type T Pre-Assembled |
| Color: | Gray |
| Connection type: | Tapered NPT |
| Country of origin: | CN |
| Material: | Iron |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00786210916750 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts T37CG-TB BlueKote Conduit Body
Brand: Thomas & Betts
Part Number: T37CG-TB
T&B BlueKote Conduit Body, Type T Pre-Assembled, 1 in Hub, 3 Hubs, 16.9 cu-in Capacity, Form 7, Tapered NPT, Iron, Epoxy Powder Coated/Zinc Plated, Gray, 7.35 in L x 4.55 in W x 3.1 in H
Additional Description: TB -T37CG-TB 1 INCH C-BODY CVR GSKT T F-7
Catalog Description: 1 Inch Form 7 (T) Pre-Assembled Conduit Body, Cover and Gasket, Body Material Gray Iron/Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating, Cover Material and Finish Stamped Steel/Zinc Plating, Neoprene Gasket
T37CG-TB Item Features
- Bluekote teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
- Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
- Bodies are designed with a flat back, allowing more cubic inch capacity
- T&B Form 7 bodies and covers are interchangeable with Crouse-Hinds and Appleton Form 7 bodies and covers
- Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
- Connect conduit sections
- Act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
T37CG-TB Standards
CSA Certified|UL File No. E2969SKU #2147517Part Number #T37CG-TBUNSPSC39131708UPC00786210916750
