Brand: Thomas & Betts

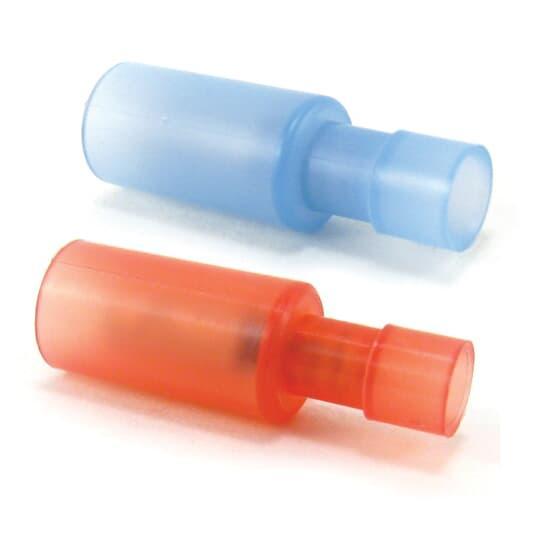

Thomas & Betts TNF14-4MB-XV Sta-Kon Bullet Disconnect
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts TNF14-4MB-XV Sta-Kon Bullet Disconnect
Brand: Thomas & Betts
Thomas & Betts TNF14-4MB-XV Sta-Kon Bullet Disconnect
Part #:TNF14-4MB-XV
SKU #: 2185945
$37.50/75EA
Key Features
Part #:TNF14-4MB-XV
SKU #: 2185945
Brand: Thomas & Betts
Conductor Size: 16 to 14, 16 to 14 AWG
Dimensions: 0.177 in Dia
Finish: Tin Plated
Overall Length: 1.063, 1.063 in
Specifications: 0.413 in L Bullet
$37.50/75EA
- Nylon insulation
- Molded insulator
- Internal barrel serrations
- Funnel entry
- Metal insulation sleeve
- Male disconnect termination
- Brass with copper sleeve terminal material
- Application tool WT112M, CM2000A
Specifications
Brand: Thomas & Betts
Conductor Size: 16 to 14, 16 to 14 AWG
Dimensions: 0.177 in Dia
Finish: Tin Plated
Overall Length: 1.063, 1.063 in
Specifications: 0.413 in L Bullet
Temperature Rating (Degrees F): 105, 105 deg C
Type: Fully Insulated
Voltage Rating: 600, 600 VAC
Color: Blue
Country of origin: TW
Material: Brass
Manufacturer Name: ABB
UNSPSC: 39121447
UPC: 00728494144894
Thomas & Betts TNF14-4MB-XV Sta-Kon Bullet Disconnect
Catamount Bullet Disconnect, Fully Insulated, 16 to 14 AWG Conductor, 0.157 in Diameter Bullet, 1.063 in Overall Length, 600 VAC, Specifications: 0.413 in L Bullet, 105 deg C, Brass, Tin Plated, Blue, 0.177 in Dia
Additional Description: TB -TNF14-4MB-XV NYL FULLY INSUL MALE BULLET 16-14 BULLET
Catalog Description: Fully Insulated Nylon Male Bullet Disconnects for Wire Range 16-14 , Blue
Item Features
Item FeaturesCSA Certified|UL94 V-2 Flammability Rated|UL File No. E9809
