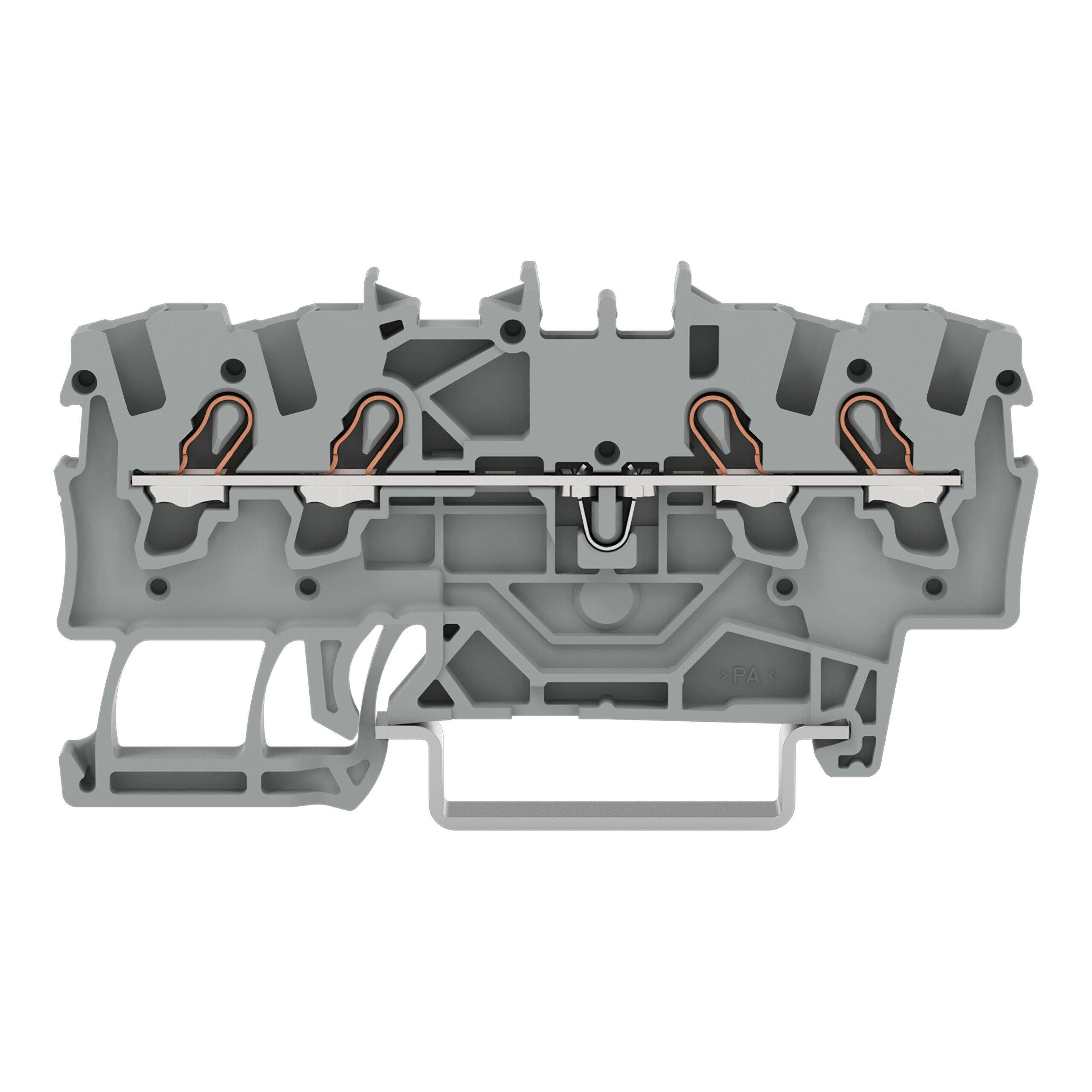

WAGO 2001-1401 TOPJOB S feedthrough terminal block
Part Number # 2001-1401
SKU # 999680
Wago 2001-1401 Key Features
WAGO 2001-1401 TOPJOB S feedthrough terminal block
Brand: Wago
Part Number: 2001-1401
WAGO Terminal Block, Series: 2001, 800 VAC, 18 A, 22 to 14 AWG Wire, 0.35 to 0.43 in Wire Strip Length, Through Terminal, DIN Rail Mount, Cage Clamp, Polyamide 6.6 Insulation, Gray, 1.299 in H x 0.165 in W x 2.76 in D
Additional Description: WAGO-2001-1401 4-CONDUCTOR THROUGH TERMINAL BLOCK; 1.5 MM; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 1,50 MM; GRAY 20011401
Catalog Description: 4-conductor through terminal block; 1.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; gray
2001-1401 Specifications
- 4 terminals
- 1 potential, front-entry wiring, 8 kV impulse voltage, 3 deg pollution
- Horizontal design, center/side marking
- Push-in CAGE CLAMP® connection technology, operating tool actuation
- Copper conductor
- 800 V rated Voltage, 600 V UL/CSA, 18 A rated current, 15 A UL/CSA
2001-1401 Application
For EX e ll Applications2001-1401 Item Features
- 4 terminals
- 1 potential, front-entry wiring, 8 kV impulse voltage, 3 deg pollution
- Horizontal design, center/side marking
- Push-in CAGE CLAMP connection technology, operating tool actuation
- Copper conductor
- 800 V rated Voltage, 600 V UL/CSA, 18 A rated current, 15 A UL/CSA
- https://www.youtube.com/watch?v=178VcP0Ui8s
2001-1401 Standards
RoHS CompliantSKU #999680Part Number #2001-1401UNSPSC39121410UPC04017332998666
