Part Number # 2002-1211/1000-410
SKU # 2247822
Image Disclaimers Message
2002-1211/1000-410

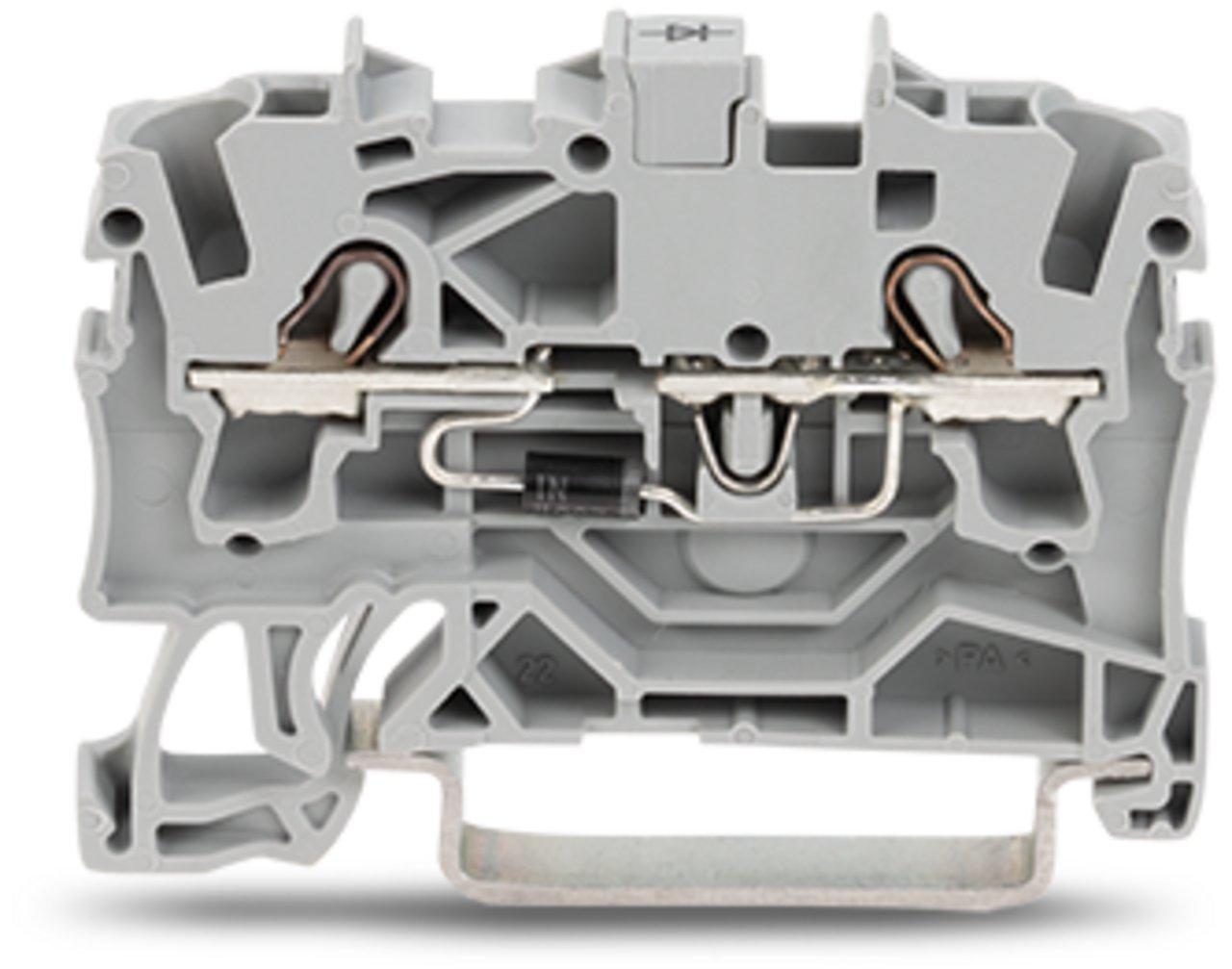

WAGO 2002-1211/1000-410 Diode terminal block
Part Number # 2002-1211/1000-410
SKU # 2247822
Wago 2002-1211/1000-410 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-1211/1000-410 |
| SKU #: | 2247822 |
| Amperage Rating: | 0.5 A |
| Dimensions: | 1.909 in H x 0.205 in W x 1.295 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Operating tool |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | CN |
| Depth: | 48.5 mm / 1.909 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Rated current: | 0.003 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 5.300 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454537647 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2002-1211/1000-410 Diode terminal block
Brand: Wago
Part Number: 2002-1211/1000-410
Additional Description: WAGO-2002-1211/1000-410 COMPONENT TERMINAL BLOCK; 2-CONDUCTOR; WITH DIODE 1N4007; ANODE, LEFT SIDE; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM; PUSH-IN CAGE CLAMP; 2,50 MM; GRAY 51190181 2-CONDUCTOR; WITH DIODE 1N4007; 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; GRAY 60325520
Catalog Description: Component terminal block; 2-conductor; with diode 1N4007; anode, left side; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
2002-1211/1000-410 Standards
RoHS CompliantSKU #2247822Part Number #2002-1211/1000-410UNSPSC39121410UPC04045454537647
