WAGO 2002-1661 Carrier terminal block
Part Number # 2002-1661
SKU # 2212694
$5.07 / Each
Wago 2002-1661 Key Features
Brand: Wago
Part Number # 2002-1661
SKU #2212694
Amperage Rating: 16 A

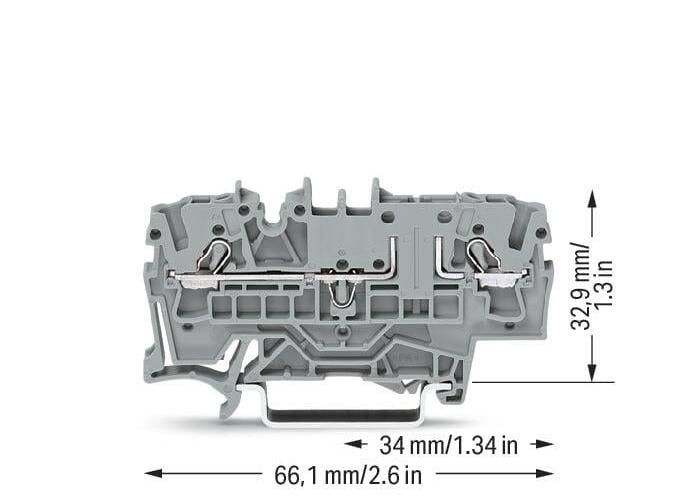

Dimensions: 2.602 in H x 0.205 in W x 1.295 in D
Number of Poles: 2
Type: Operating Tool
Voltage Rating: 400 V
Wire Size: 22 to 12 AWG
Actuation type: Push-in || Operating tool
Approvals per: UL 1059
Color: Gray
Connection technology: Push-in CAGE CLAMP®
Connection type: Clamp
Country of origin: CN
Depth: 66.1 mm / 2.602 inch
Insulation material: Polyamide (PA66)
Material: Polyamide
Mounting type: 35 mm DIN Rail, DIN-35 rail
Nominal cross-section: 2.5 mm²
Rated current: 16 A
Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
Total number of connection points: 2
Weight: 7.029 g
Width: 5.2 mm / 0.205 inch
Wiring type: Front-entry wiring
Manufacturer Name: WAGO Corporation
UNSPSC: 39121410
UPC: 04045454974770
$5.07 / Each
WAGO 2002-1661 Carrier terminal block
Brand: Wago
Part Number: 2002-1661
Additional Description: WAGO-2002-1661 2-CONDUCTOR CARRIER TERMINAL BLOCK; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; GRAY 51222020
Catalog Description: 2-conductor carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
2002-1661 Standards
CSA 22.2 No 158|ATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc)|RoHS CompliantSKU #2212694Part Number #2002-1661UNSPSC39121410UPC04045454974770
