Brand: Wago
2106-1301
WAGO 2106-1301 TOPJOB S feedthrough terminal block with Lever and Open Tool Slots
Part Number # 2106-1301
SKU # 2364271
$5.58 / Each
Typical price:$6.05 / Each
Wago 2106-1301 Key Features
Brand: Wago
Part Number # 2106-1301
SKU #2364271
Amperage Rating: 41 A

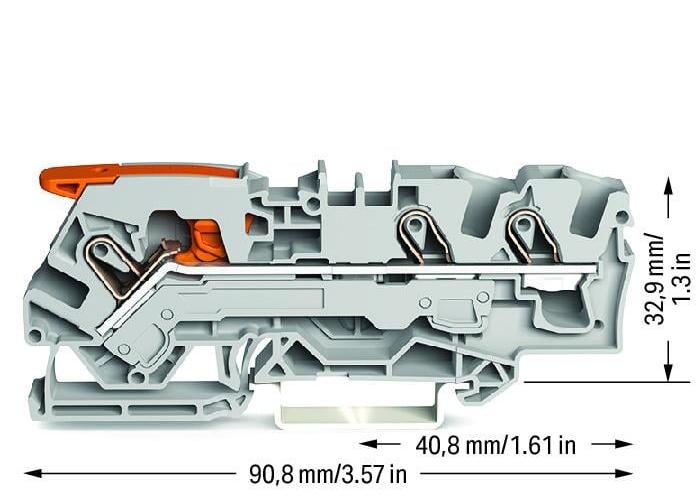

Dimensions: 3.575 in H x 0.295 in W x 1.555 in D
Number of Poles: 1
Type: Push-In
Voltage Rating: 800 V
Wire Size: 20 to 8 AWG
Actuation type: Push-in || Lever
Color: Gray
Connection technology: Push-in CAGE CLAMP®
Connection type: Clamp
Country of origin: DE
Depth: 90.8 mm / 3.575 inch
Insulation material: Polyamide (PA66)
Material: Polyamide
Mounting type: 35 mm DIN Rail, DIN Rail, DIN-35 rail
Nominal cross-section: 6 mm²
Rated current: 41 A
Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
Total number of connection points: 3
Weight: 17.010 g
Width: 7.5 mm / 0.295 inch
Wiring type: Front-entry wiring
Manufacturer Name: WAGO Corporation
UNSPSC: 39121410
UPC: 04055143742054
$5.58 / Each
Typical price:$6.05 / Each
SKU # 2364271
Part Number # 2106-1301
WAGO 2106-1301 TOPJOB S feedthrough terminal block with Lever and Open Tool Slots
Brand: Wago
Part Number: 2106-1301
Additional Description: WAGO-2106-1301 3-CONDUCTOR THROUGH TERMINAL BLOCK; WITH LEVER AND PUSH-IN CAGE CLAMP ; 6 MM ; WITH TEST PORT; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 6,00 MM ; GRAY block with Lever and Open Tool Slots; rail mount; 3-conductor; 7.5 mm wide; gray
Catalog Description: 3-conductor through terminal block; with lever and Push-in CAGE CLAMP®; 6 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 6,00 mm²; gray
2106-1301 Standards
CSA 22.2 No 158|ATEX: PTB 18 ATEX 1011 U / IECEx: PTB 18.0018U (Ex eb IIC Gb)|RoHS CompliantSKU #2364271Part Number #2106-1301UNSPSC39121410UPC04055143742054
