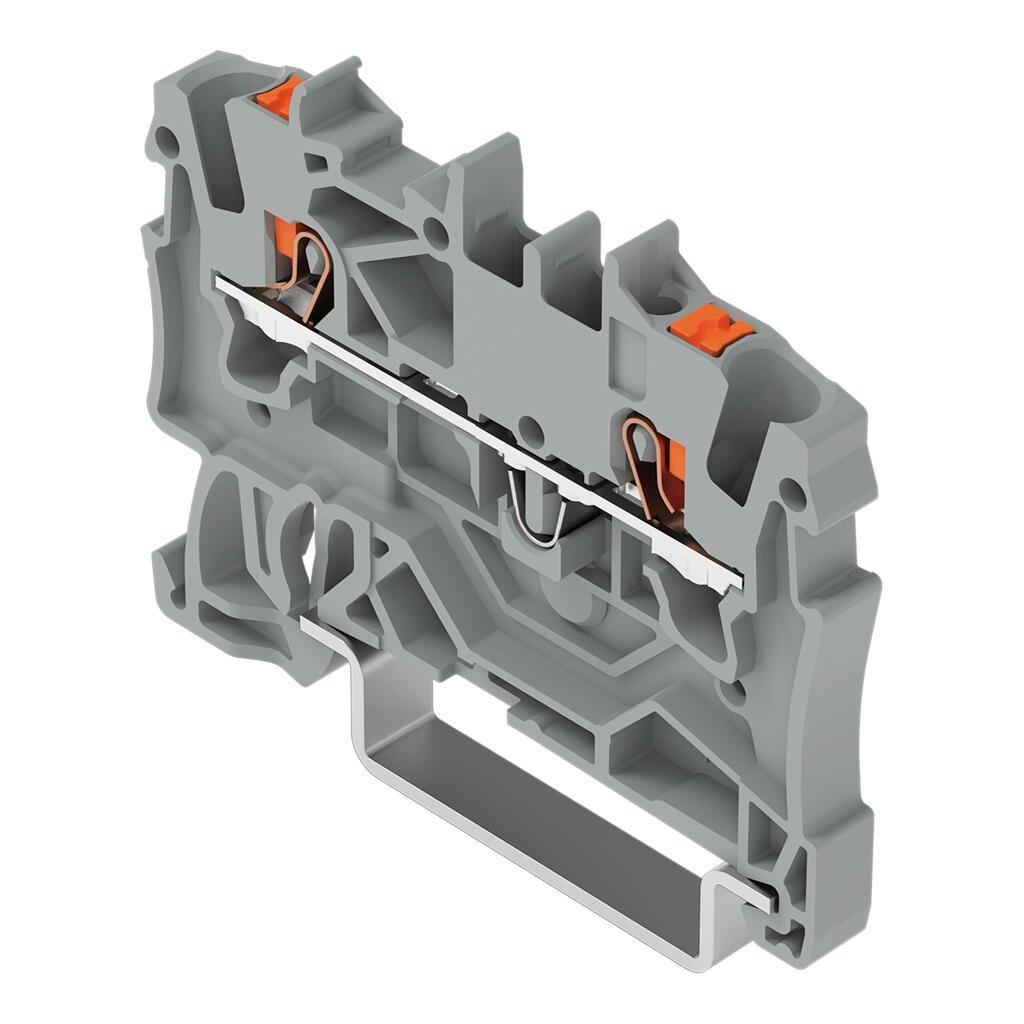

WAGO 2201-1201 TOPJOB S feedthrough terminal block with Push-buttons
Part Number # 2201-1201
SKU # 2382111
$1.27 / Each
Wago 2201-1201 Key Features
Brand: Wago
Part Number # 2201-1201
SKU #2382111
Amperage Rating: 18 A
Dimensions: 1.909 in H x 0.165 in W x 1.555 in D
Number of Poles: 1
Type: Operating Tool
Voltage Rating: 800 V
Wire Size: 22 to 14 AWG
Actuation type: Push-in || Push-button || Operating tool
Approvals per: UL 1059
Color: Gray
Connection technology: Push-in CAGE CLAMP®
Connection type: Clamp
Country of origin: DE
Depth: 48.5 mm / 1.909 inch
Insulation material: Polyamide (PA66)
Material: Polyamide
Mounting type: 35 mm DIN Rail, DIN-35 rail
Nominal cross-section: 1.5 mm²
Rated current: 18 A
Solid conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
Total number of connection points: 2
Weight: 4.145 g
Width: 4.2 mm / 0.165 inch
Wiring type: Front-entry wiring
Manufacturer Name: WAGO Corporation
UNSPSC: 39121410
UPC: 04055143695152
$1.27 / Each
- WAGO, 2201-1201, Conductor Terminal Block, Operating Tool, 800 V, 18 A, 1 Pole, 22 to 14 AWG Wire, 0.35 to 0.43 in Wire Strip Length, 35 mm DIN Rail Mounting, Clamp Connection, Polyamide, Gray, 1.909 in H x 0.165 in W x 1.555 in D Dimensions
2201-1201 Standards
CSA 22.2 No 158|ATEX: PTB 18 ATEX 1004 U / IECEx: PTB 18.0011U (Ex eb IIC Gb)|RoHS CompliantSKU #2382111Part Number #2201-1201UNSPSC39121410UPC04055143695152
