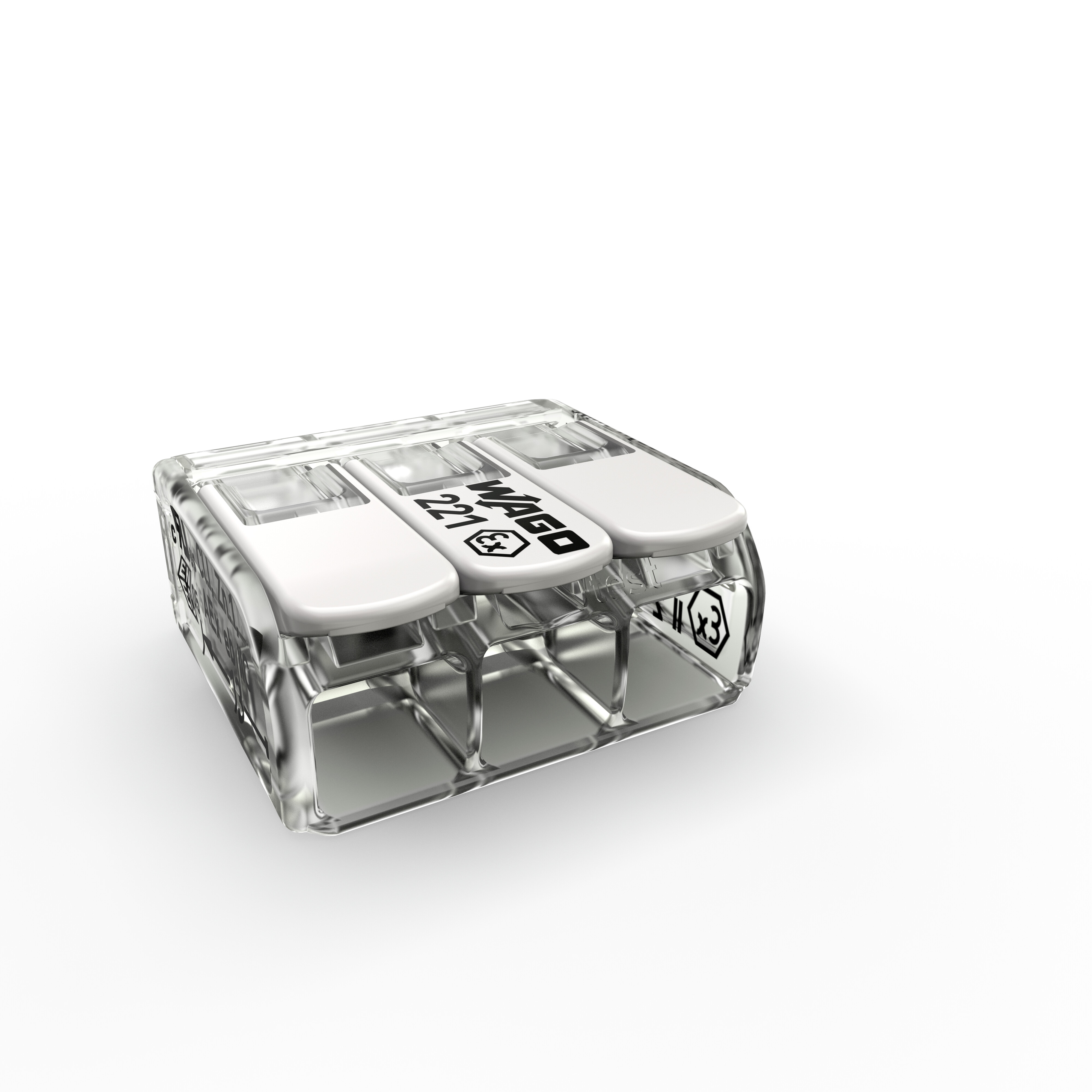

WAGO 221-683 221 3-Conductor Terminal Block, 440 V, 30 A, 20 to 10 AWG Wire, 3 Poles, Carrier Rail Mounting
Part Number # 221-683
SKU # 2401742
$1.32 / Box
Wago 221-683 Key Features
Brand: Wago
Part Number # 221-683
SKU #2401742
Amperage Rating: 30 A
Dimensions: 0.39 in H x 0.90 in W x 0.83 in D
Number of Poles: 3
Series: 221
Temperature Rating (Degrees F): -55 to 105 deg C
Type: 3-Conductor
Voltage Rating: 440 V
Wire Size: 20 to 10 AWG
Color: Transparent
Connection type: Push-In
Country of origin: CH
Material: Copper
Mounting type: Carrier Rail
Manufacturer Name: WAGO Corporation
UNSPSC: 39121421
UPC: 04055143860574
$1.32 / Box
WAGO 221-683 221 3-Conductor Terminal Block, 440 V, 30 A, 20 to 10 AWG Wire, 3 Poles, Carrier Rail Mounting
Brand: Wago
Part Number: 221-683
Additional Description: WAGO-221-683 LEVER-NUTS SPLICING CONNECTOR FOR EX APPLICATIONS; COMPACT SPLICING CONNECTOR FOR ALL CONDUCTOR TYPES 20-10 AWG, TRANSPARENT, 60398656 CONDUCTOR, W/OPERATING LEVERS, TRANSPARENT HOUSING, 10AWG 1EA=30PCS 60398656
Catalog Description: COMPACT Splicing Connector; for all conductor types; for Ex e applications; max. 6 mm²; 3-conductor; with levers; transparent housing; Operating temperature (max.): 105 °C; 6,00 mm²; transparent
221-683 Application
For Ex applications221-683 Item Features
- ATEX (Ex 2 II G), IECEx (Ex eb IIC Gb) Zone 1, 2
- Available as 2-, 3- and 5-wire connectors
- Connection of all conductor types
- Custom carriers are possible
- Ease of use - pull the lever up, insert a conductor and push the lever back down
- Easily terminate conductors from 0.5 to 6 sq-mm
- IECEX (Ex eb IIC Gb), American Ex (AEx eb IICGb) / Class 1, Zone 1
- Mounting carrier for installation conforms to standards
- Quickly install devices with higher power consumption
- Safely install long cable runs with larger conductor cross sections
- Time savings for installers and device manufacturers
221-683 Standards
EN 60998|UL 60079|IEC 60079-0|CNCA-C23-01|RoHS CompliantSKU #2401742Part Number #221-683UNSPSC39121421UPC04055143860574
