Brand: Wago

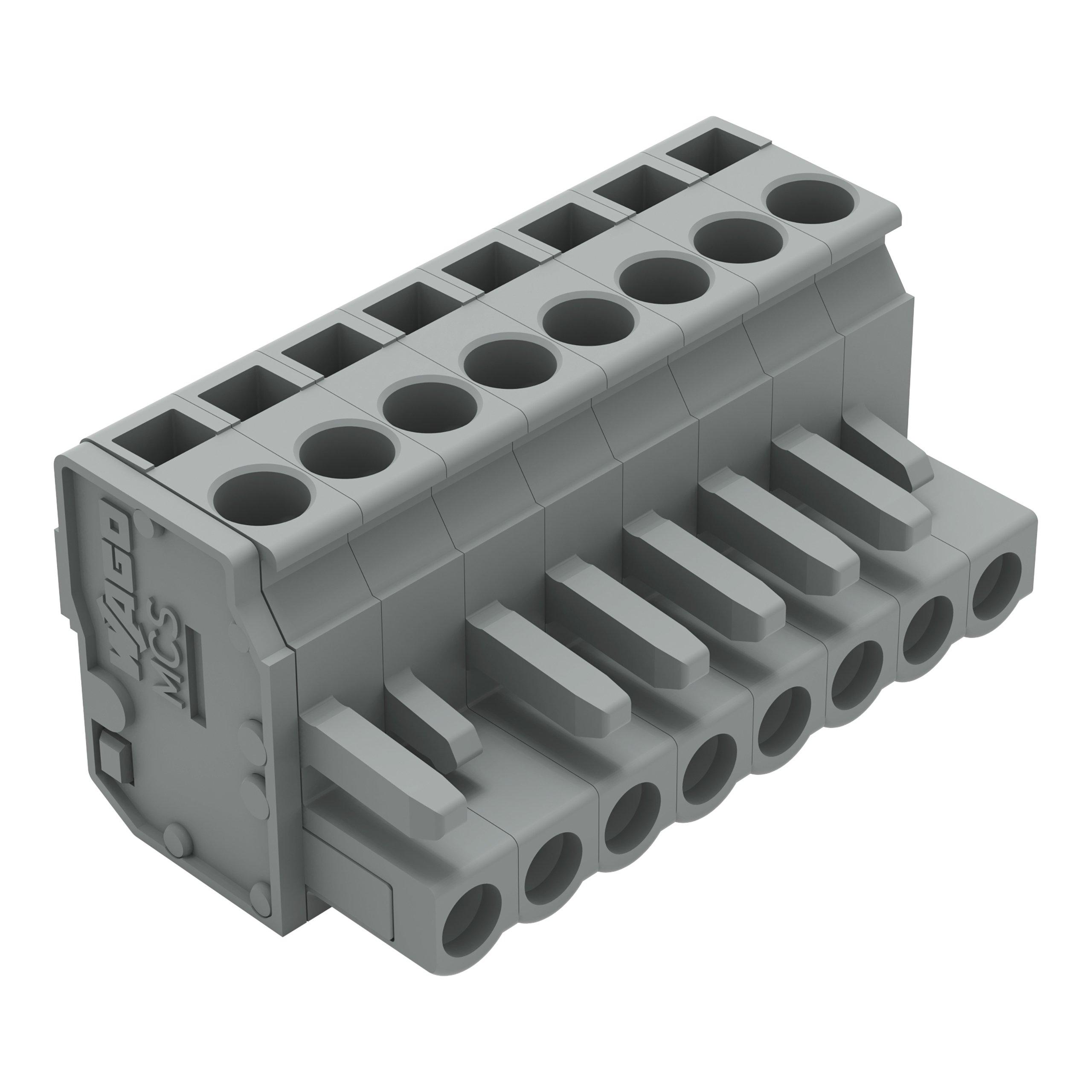

WAGO 232-208/026-000 1-conductor female plug
Part Number # 232-208/026-000
SKU # 2196966
$8.14 / Each
Wago 232-208/026-000 Key Features
Brand: Wago
Part Number # 232-208/026-000
SKU #2196966
Amperage Rating: 14 A
Dimensions: 0.783 in H x 1.669 in W x 0.896 in D
Number of Poles: 8
Temperature Rating (Degrees F): -35 to 60 deg C
Type: Operating Tool
Voltage Rating: 630 V
Wire Size: 28 to 12 AWG
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Gray
Conductor entry direction to mating direction: 90 °
Connection technology: CAGE CLAMP®
Connection type: Clamp
Connector (connection type): For conductor
Contact material: Copper alloy
Contact type (pluggable connector): Female connector/socket
Country of origin: PL
Depth: 22.75 mm / 0.896 inch
Height: 19.9 mm / 0.783 inch
Insulation material: Polyamide (PA66)
Material: Polyamide
Number of connection types: 1
Rated current: 14 A
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 8
Weight: 15.070 g
Width: 42.4 mm / 1.669 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 39121459
UPC: 04044918393324
$8.14 / Each
WAGO 232-208/026-000 1-conductor female plug
Brand: Wago
Part Number: 232-208/026-000
Additional Description: WAGO-232-208/026-000 1-CONDUCTOR FEMALE PLUG; ANGLED; 2.5 MM ; PIN SPACING 5 MM; 8-POLE; 2,50 MM ; GRAY 51121533
Catalog Description: 1-conductor female connector, angled; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 8-pole; 2,50 mm²; gray
232-208/026-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Integrated test ports
- With coding fingers
232-208/026-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2196966Part Number #232-208/026-000UNSPSC39121459UPC04044918393324
