Brand: Wago

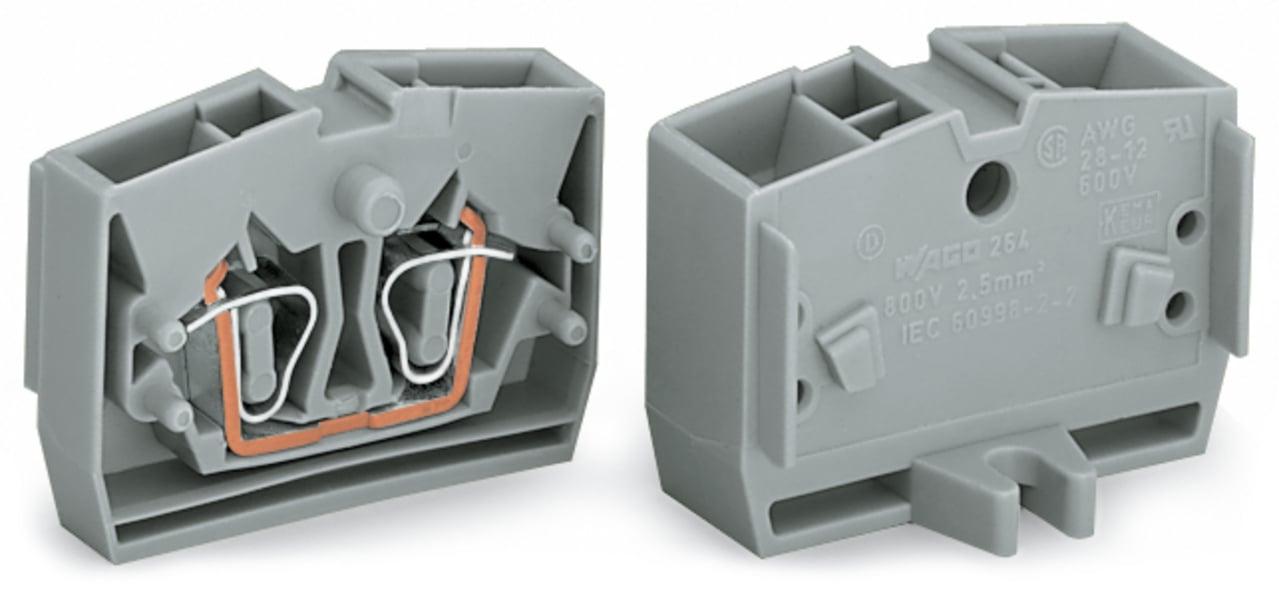

WAGO 264-326 2-conductor center terminal block
Part Number # 264-326
SKU # 2245391
$129.00 / 100Each
Wago 264-326 Key Features
Brand: Wago
Part Number # 264-326
SKU #2245391
Amperage Rating: 24 A
Dimensions: 0.87 in H x 0.236 in W x 1.26 in D
Number of Poles: 1
Type: Operating Tool
Voltage Rating: 800 V
Wire Size: 28 to 12 AWG
Actuation type: Operating tool
Color: Orange
Connection technology: CAGE CLAMP®
Connection type: Clamp
Country of origin: CH
Depth: 32 mm / 1.26 inch
Material: Polyamide
Mounting type: Mounting flange
Rated current: 24 A
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 2
Weight: 3.751 g
Width: 6 mm / 0.236 inch
Wiring type: Front-entry wiring
Manufacturer Name: WAGO Corporation
UNSPSC: 39121407
UPC: 04044918415316
$129.00 / 100Each
WAGO 264-326 2-conductor center terminal block
Brand: Wago
Part Number: 264-326
Additional Description: WAGO-264-326 2-CONDUCTOR CENTER TERMINAL BLOCK; WITHOUT PUSH-BUTTONS; 2.5 MM; CAGE CLAMP; 2,50 MM; ORANGE 51123587 WITHOUT PUSH-BUTTONS; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; ORANGE 51123587
Catalog Description: 2-conductor center terminal block; without push-buttons; 1-pole; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; orange
264-326 Standards
CSA 22.2 No 158|RoHS CompliantSKU #2245391Part Number #264-326UNSPSC39121407UPC04044918415316
