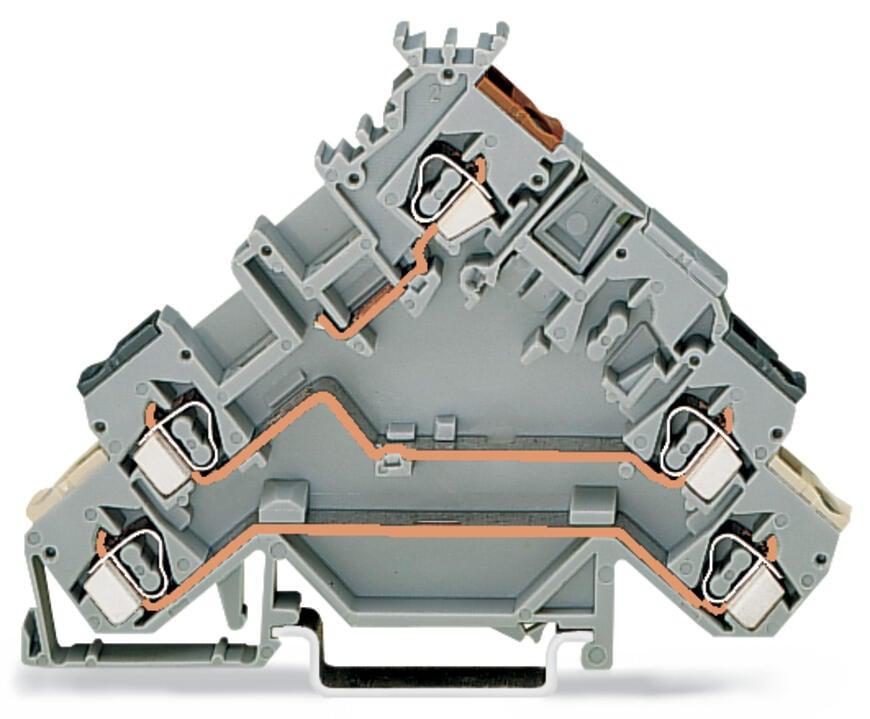

WAGO 280-583 3-conductor actuator supply terminal block
Part Number # 280-583
SKU # 2316777
$10.74 / Each
Wago 280-583 Key Features
Brand: Wago
Part Number # 280-583
SKU #2316777
Amperage Rating: 20 A
Dimensions: 3.563 in H x 0.197 in W x 2.5 in D
Number of Poles: 3
Type: Operating Tool
Voltage Rating: 400 V
Wire Size: 28 to 12 AWG
Actuation type: Operating tool
Color: Gray
Connection technology: CAGE CLAMP®
Connection type: Clamp
Country of origin: DE
Depth: 90.5 mm / 3.563 inch
Insulation material: Polyamide (PA66)
Material: Polyamide
Mounting type: 35 mm DIN Rail, DIN-35 rail
Rated current: 20 A
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 5
Weight: 14.900 g
Width: 5 mm / 0.197 inch
Wiring type: Front-entry wiring
Manufacturer Name: WAGO Corporation
UNSPSC: 39121410
UPC: 04044918637060
$10.74 / Each
- WAGO, 280-583, Actuator Supply Terminal Block, Operating Tool, 400 V, 20 A, 3 Pole, 28 to 12 AWG Wire, 0.31 to 0.35 in Wire Strip Length, 35 mm DIN Rail Mounting, Clamp Connection, Polyamide, Gray, 3.563 in H x 0.197 in W x 2.5 in D Dimensions
280-583 Standards
RoHS CompliantSKU #2316777Part Number #280-583UNSPSC39121410UPC04044918637060
