Brand: Wago

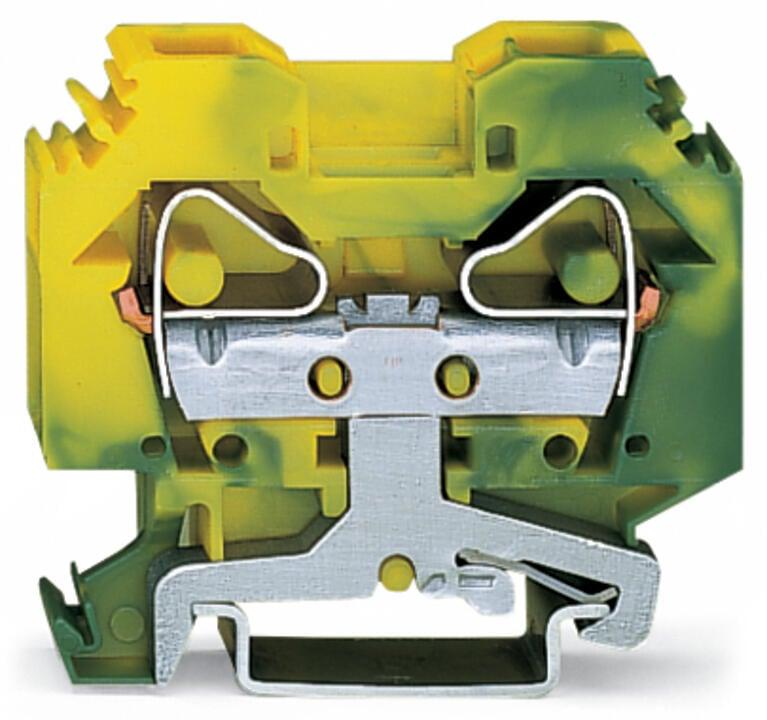

WAGO 283-107 Terminal Blocks
Part Number # 283-107
SKU # 2240232
$12.82 / Each
Only 3 left in stock order soon
Ships in 1 Business Day
Wago 283-107 Key Features
Brand: Wago
Part Number # 283-107
SKU #2240232
Dimensions: 2.283 in H x 0.472 in W x 1.791 in D
Number of Poles: 1
Temperature Rating (Degrees F): -35 to 85 deg C
Type: Operating Tool
Wire Size: 24 to 6 AWG
Actuation type: Operating tool
Color: Green-yellow, Green/Yellow
Connection technology: CAGE CLAMP®
Connection type: Clamp
Country of origin: DE
Depth: 58 mm / 2.283 inch
Insulation material: Polyamide (PA66)
Material: Polyamide
Mounting type: 35 mm DIN Rail, DIN-35 rail
Solid conductor: 0.2 … 16 mm² / 24 … 6 AWG
Total number of connection points: 2
Weight: 41.624 g
Width: 12 mm / 0.472 inch
Wiring type: Side-entry wiring
Manufacturer Name: WAGO Corporation
UNSPSC: 39121410
UPC: 04044918551991
$12.82 / Each
WAGO 283-107 Terminal Blocks
Brand: Wago
Part Number: 283-107
Additional Description: WAGO-283-107 2-CONDUCTOR GROUND TERMINAL BLOCK; 51133805 DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP ; 16,00 MM ; GREEN-YELLOW 51160752
Catalog Description: 2-conductor ground terminal block; 16 mm²; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 16,00 mm²; green-yellow
283-107 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #2240232Part Number #283-107UNSPSC39121410UPC04044918551991
