Part Number # 2857-550
SKU # 2287969
Image Disclaimers Message
2857-550

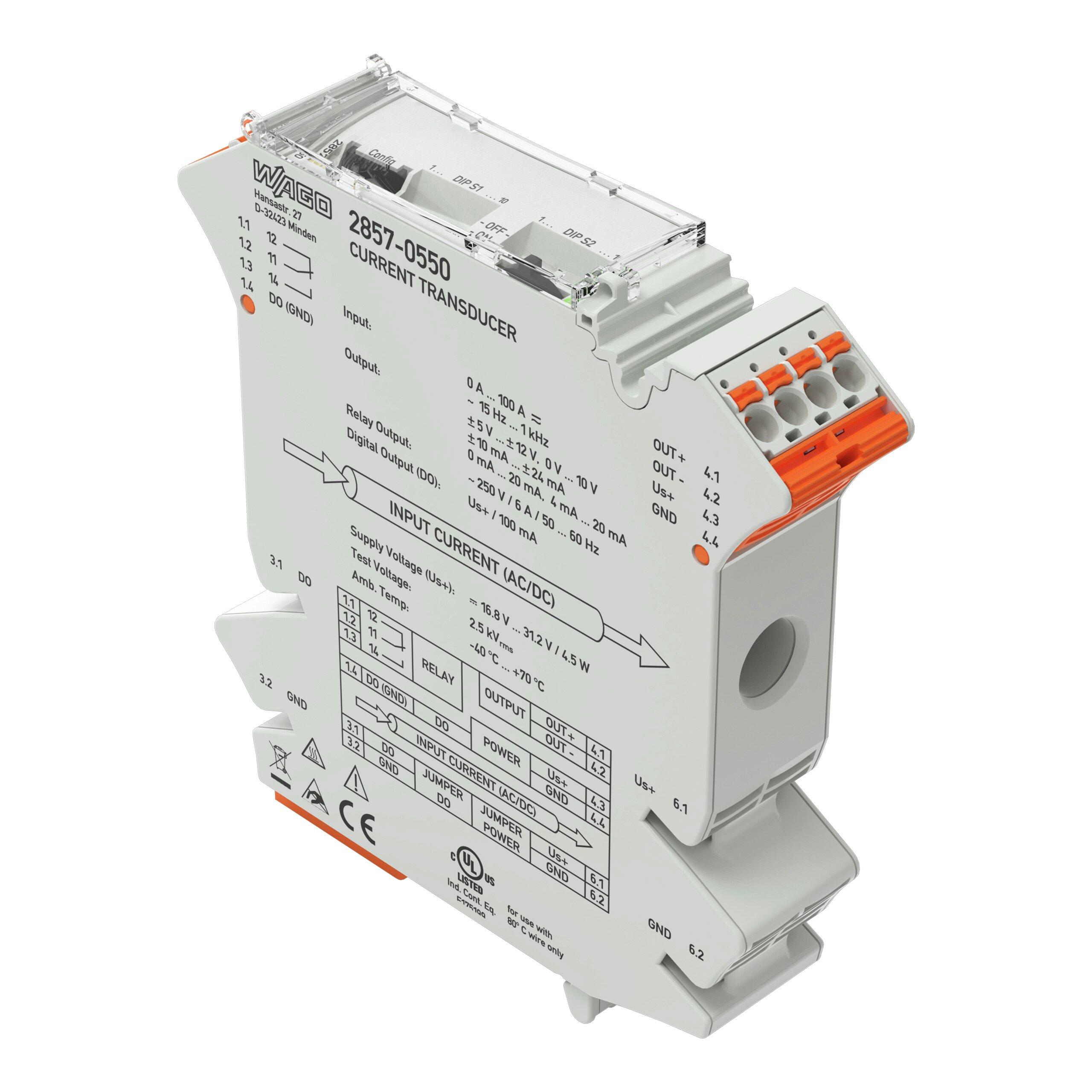

WAGO 2857-550 JUMPFLEX signal conditioner
Part Number # 2857-550
SKU # 2287969
$929.06 / Each
Wago 2857-550 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2857-550 |
| SKU #: | 2287969 |
| Dimensions: | 4.13 in H x 0.88 in W x 4.21 in D |
| Input Type: | Current |
| Input Voltage: | 24 V DC, 24 VDC |
| Series: | 2857 |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Type: | Adjustable |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Cage Clamp |
| Country of origin: | DE |
| Depth: | 105 mm / 4.134 inch |
| Frequency range: | 15 … 1000 Hz |
| Input current: | 100 A |
| Input signal (current): | AC 0.5 … 100 A; DC ±100 A |
| Input signal type: | Current |
| Measurement method: | True RMS measurement; Arithmetic mean value |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of changeover/switchover contacts: | 1 |
| Output current: | 4 to 20 A |
| Output signal (current): | ±10 mA; 0 … 10 mA; 2 … 10 mA; ±20 mA; 0 … 20 mA; 4 … 20 mA |
| Output signal (voltage): | ± 5 V; 0 … 5 V; 1 … 5 V; ± 10 V; 0 … 10 V |
| Output signal type: | Current || Voltage |
| Output type: | Current |
| Output voltage: | 2 to 10 V |
| Power consumption at nominal supply voltage: | ≤ 50 mA (+ IDO) |
| Power supply type: | 24 VDC |
| Solid conductor: | 0.2 … 2.5 mm² / 24 … 12 AWG |
| Standards/Specifications: | EN 61010-1; EN 61373 |
| Supply voltage range: | ±30 % |
| WAGO Connector: | picoMAX® 5.0 |
| Weight: | 102.939 g |
| Width: | 22.5 mm / 0.886 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04050821676997 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$929.06 / Each
Quantity:
- WAGO, 2857-550, Signal Conditioner, Adjustable, Series: 2857, Current Input, 24 V DC Input, 2 to 10 V Output, 100 A Input Current, 4 to 20 A Output Current, 3 kV Power, Cage Clamp Connection, 35 mm DIN Rail Mounting, -40 to 70 deg C, 4.13 in H x 0.88 in W x 4.21 in D Dimensions
2857-550 Item Features
- Both digital signal output and relay with changeover contact react to configured measurement range limits (on/off switching delay and threshold value switch function can be configured with up to two threshold values)
- Clipping capability for analog signal limitation to output end values
- Adjustable software filter
- Input/output response simulation via configuration display
2857-550 Standards
RoHS Compliant|EN 50121-3-2|EN 61010-1|EN 61373SKU #2287969Part Number #2857-550UNSPSC43232306UPC04050821676997
