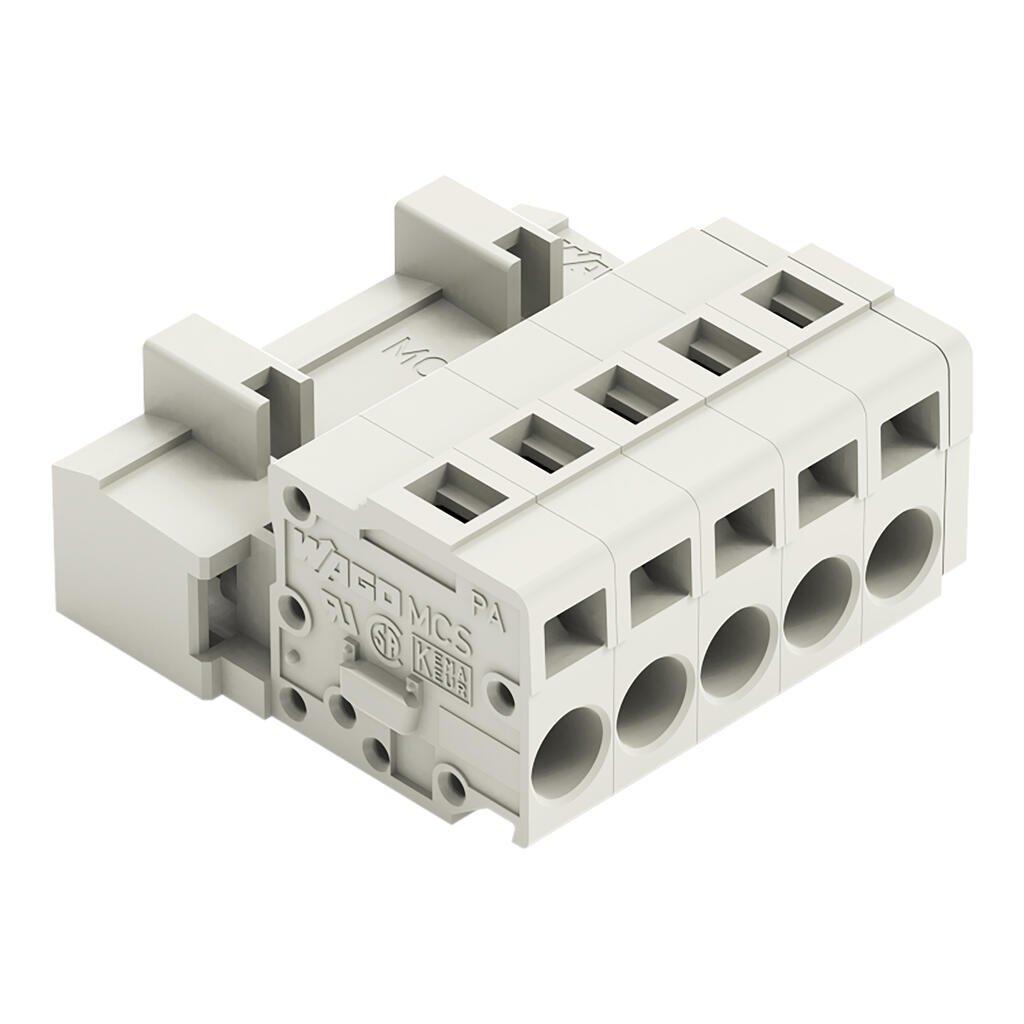

WAGO 721-605 1-conductor male connector
Part Number # 721-605
SKU # 2260510
$5.53 / Each
Wago 721-605 Key Features
Brand: Wago
Part Number # 721-605
SKU #2260510
Amperage Rating: 12 A
Dimensions: 0.563 in H x 1.11 in W x 1.083 in D
Number of Poles: 5
Temperature Rating (Degrees F): -35 to 60 deg C
Type: Operating Tool
Voltage Rating: 630 V
Wire Size: 28 to 12 AWG
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Light gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
Connection type: Clamp
Connector (connection type): For conductor
Contact material: Electrolytic copper (ECu)
Contact type (pluggable connector): Male connector/plug
Country of origin: DE
Depth: 27.5 mm / 1.083 inch
Height: 14.3 mm / 0.563 inch
Insulation material: Polyamide (PA66)
Material: Polyamide
Number of connection types: 1
Rated current: 0
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 5
Weight: 7.840 g
Width: 28.2 mm / 1.11 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 39121421
UPC: 04044918262781
$5.53 / Each
WAGO 721-605 1-conductor male connector
Brand: Wago
Part Number: 721-605
Additional Description: WAGO-721-605 1-CONDUCTOR MALE CONNECTOR; 100% PROTECTED AGAINST MISMATING; 2.5 MM ; PIN SPACING 5 MM; 5-POLE; 2,50 MM ; LIGHT GRAY 51111272
Catalog Description: 1-conductor male connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 5-pole; 100% protected against mismating; 2,50 mm²; light gray
721-605 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Versions available with snap-in mounting feet or flanges for panel or through-panel mounting
- 3- to 5-pole male connectors are also available with preceding ground contact
- 100 Percent protected against mismating
- With coding fingers
721-605 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2260510Part Number #721-605UNSPSC39121421UPC04044918262781
