Brand: Wago

750-401

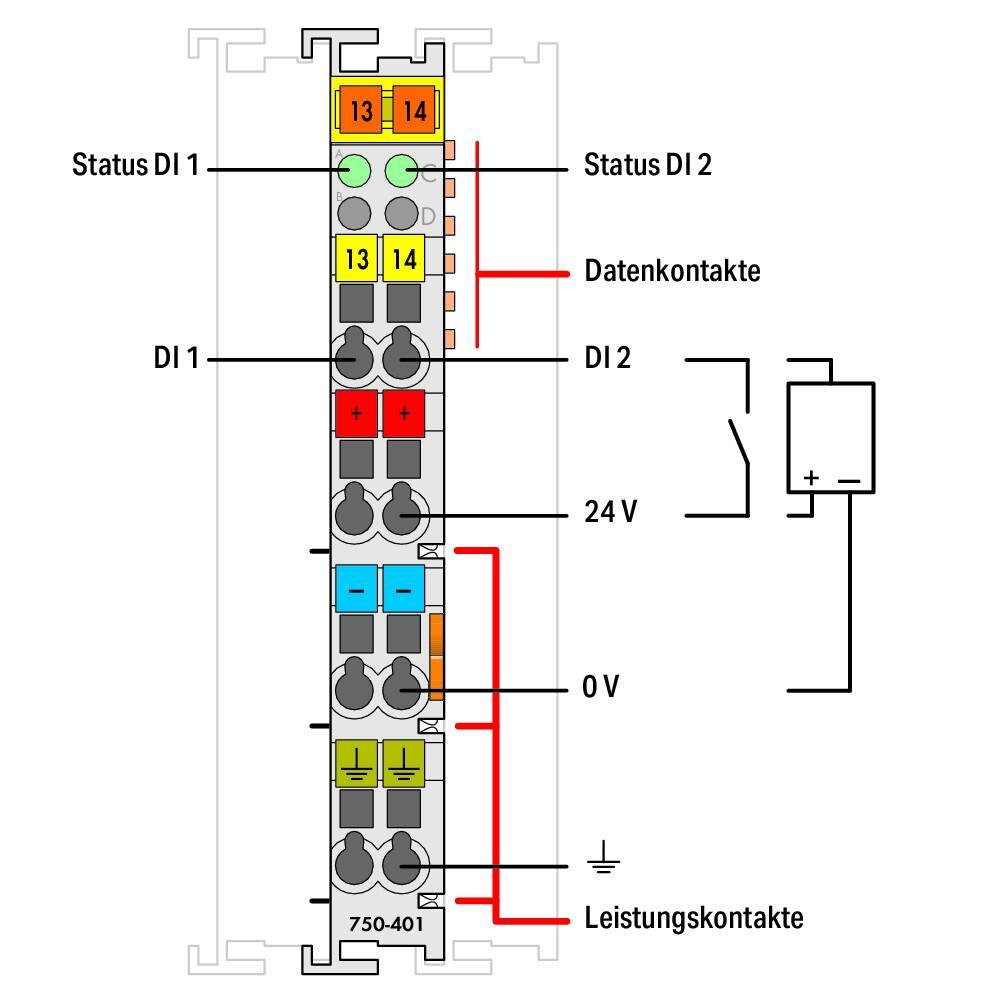

WAGO 750-401 2-channel digital input

Part Number # 750-401

SKU # 2235235

$57.28 / Each

Wago 750-401 Key Features

Brand: Wago
Part Number # 750-401
SKU #2235235
Dimensions: 3.93 in H x 0.47 in W x 2.74 in D
Enclosure Type: IP20
Input Type: Digital
Type: 2-Channel
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Depth: 69.8 mm / 2.748 inch
Height: 100 mm / 3.937 inch
Housing material: Polycarbonate, polyamide 6.6
Input data width (internal) (max.): 2 bit
Isolation: 500 V system/field
Material: Polycarbonate/Polyamide 6.6
Mounting position: Horizontal (standing/lying); vertical
Mounting type: 35 mm DIN Rail, DIN-35 rail
Number of digital inputs: 2
Protection type: IP20
Sensor connection: 2 x (2-wire, 3-wire, 4-wire)
Signal type: Voltage
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Supply voltage (sensor): DC 24 V
Total number of channels (module): 2
Vibration resistance: 4g per IEC 60068-2-6
Weight: 45.841 g
Width: 12 mm / 0.472 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 32151702
UPC: 04045454392574
$57.28 / Each

SKU # 2235235

Part Number # 750-401
