Brand: Wago
WAGO 750-960 Fieldbus Connector PROFIBUS
Part Number # 750-960
SKU # 1777380
$64.87 / Each
Wago 750-960 Key Features
Brand: Wago
Part Number # 750-960
SKU #1777380

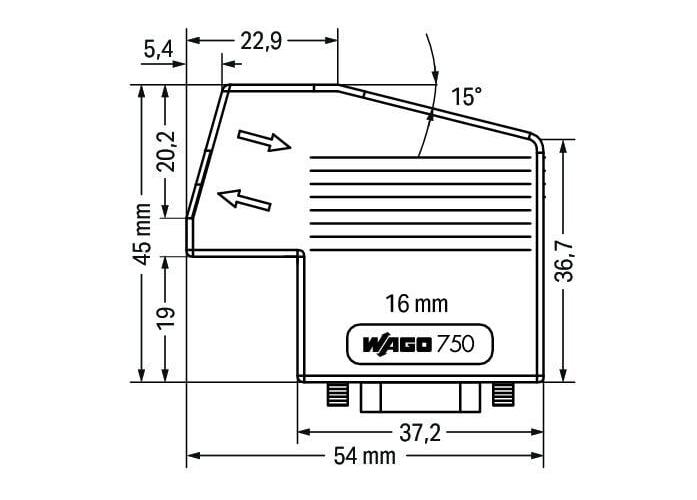

Size: 0.63 in H x 2.126 in W x 1.772 in D
Type: Male
Baud rate: 12 Mbit/s (per PROFIBUS specification)
Color: Light gray
Communication/fieldbus: PROFIBUS
Connection type: D-sub 9 plug
Country of origin: DE
Depth: 45 mm / 1.772 inch
Height: 16 mm / 0.63 inch
Housing material: PA66-105-V2
Input current: 5 mA
Material: Polyamide 6.6
Protection type: IP20
Solid conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
Supply voltage: DC 4.75 … 5.25 V
Vibration resistance: 4g per IEC 60068-2-6
Weight: 33.400 g
Width: 54 mm / 2.126 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 32151702
UPC: 04045454320157
$64.87 / Each
WAGO 750-960 Fieldbus Connector PROFIBUS
Brand: Wago
Part Number: 750-960
Additional Description: WAGO-750-960 FIELDBUS CONNECTOR PROFIBUS; WITH D-SUB MALE CONNECTOR; 9-POLE; LIGHT GRAY 51176561
Catalog Description: Fieldbus Connector PROFIBUS; with D-sub male connector; 9-pole
750-960 Item Features
- Two horizontal cable entries for both input and output
- Fast and maintenance-free CAGE CLAMP connection - a locking slide keeps the clampling unit in its open position
- Externally operable switch to activate or deactivate the network terminating resistor
750-960 Standards
RoHS Compliant|IP20SKU #1777380Part Number #750-960UNSPSC32151702UPC04045454320157
