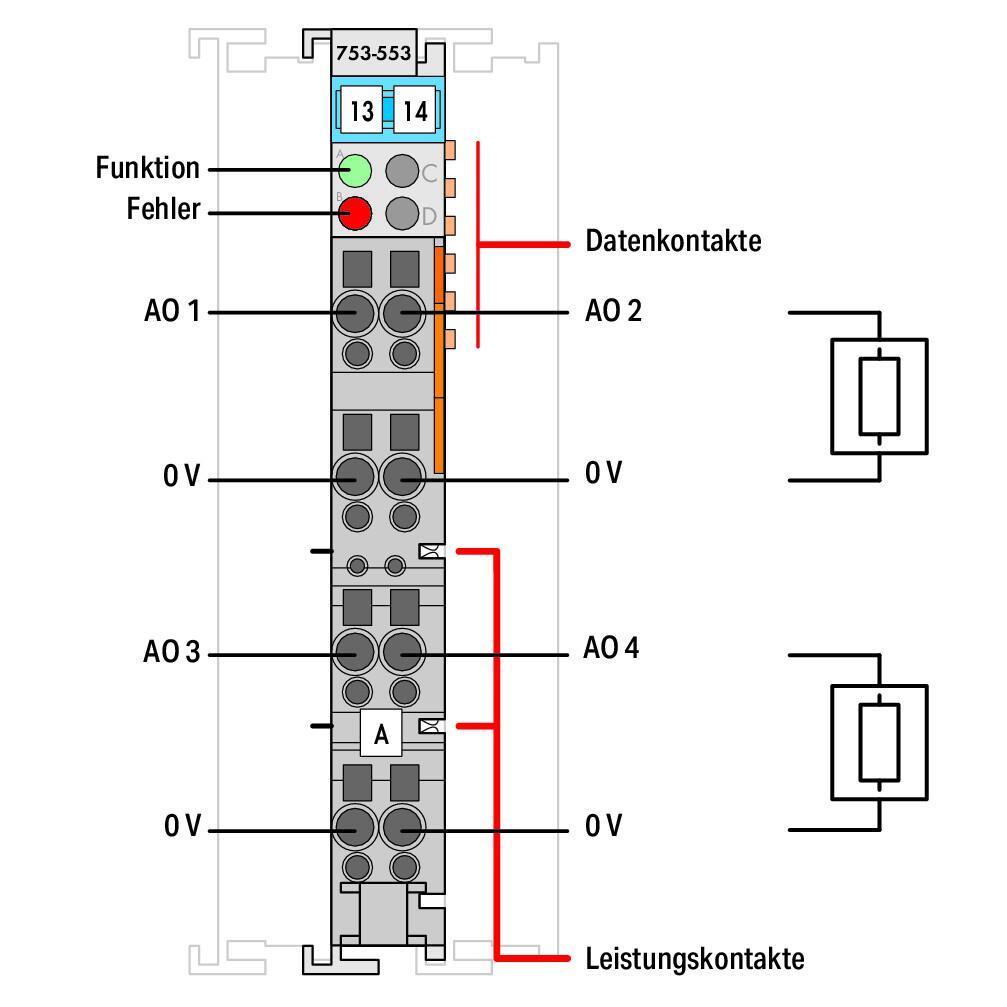

WAGO 753-553 4-channel analog output
Part Number # 753-553
SKU # 2237974
$426.83 / Each
Wago 753-553 Key Features
Brand: Wago
Part Number # 753-553
SKU #2237974
Dimensions: 3.93 in H x 0.47 in W x 2.74 in D
Enclosure Type: IP20
Type: 4-Channel
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Depth: 69.8 mm / 2.748 inch
Height: 100 mm / 3.937 inch
Housing material: Polycarbonate, polyamide 6.6
Isolation: 500 V system/field
Load impedance: Either 0 … 300 Ω or 300 … 600 Ω (same resistance for all load impedances)
Material: Polycarbonate/Polyamide 6.6
Mounting position: Horizontal (standing/lying); vertical
Mounting type: 35 mm DIN Rail, DIN-35 rail
Number of analog outputs: 4
Output type: Analog
Pluggable connector: Yes
Protection type: IP20
Signal type: Electricity
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Total number of channels (module): 4
Vibration resistance: 4g per IEC 60068-2-6
Weight: 43.500 g
Width: 12 mm / 0.472 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 32151702
UPC: 04045454668587
$426.83 / Each
- WAGO, 753-553, Analog Output, 4-Channel, Analog Output, IP20 Enclosure, 35 mm DIN Rail Mounting, Polycarbonate/Polyamide 6.6, 3.93 in H x 0.47 in W x 2.74 in D Dimensions
753-553 Application
For marine applications753-553 Standards
RoHS Compliant|CE|IP20SKU #2237974Part Number #753-553UNSPSC32151702UPC04045454668587
