Brand: Wago

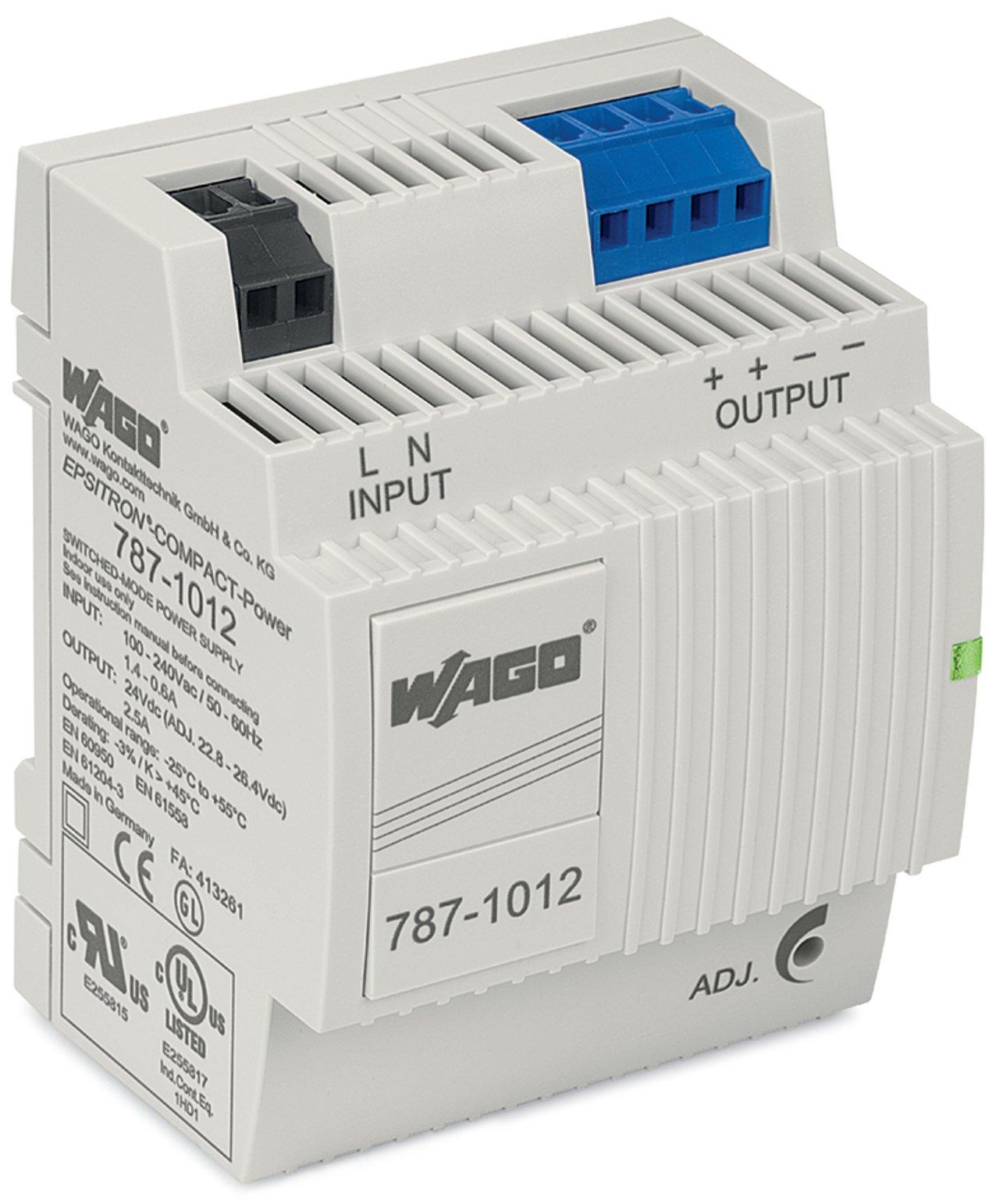

WAGO 787-1012 EPSITRON COMPACT power supply
Part Number # 787-1012
SKU # 2247531
$161.00 / Each
Wago 787-1012 Key Features
Brand: Wago
Part Number # 787-1012
SKU #2247531
Frequency Rating: 44 to 66 Hz
Input Voltage: 300 V
Connection technology: CAGE CLAMP®
Country of origin: CN
Depth: 2.323 in, 59 mm / 2.323 inch
Height: 3.504 in, 89 mm / 3.504 inch
Inrush current: ≤ 30 A (NTC)
Mounting type: 35 mm DIN Rail, DIN-35 rail
MTBF: > 500,000 h (per IEC 61709)
Open-circuit-proof: Yes
Output voltage: 24 VDC
Output voltage range: DC 22.8 … 26.4 V (adjustable)
Parallel operation: Yes
Power factor correction (PFC): Passive
Protection class: II
Protection type: IP20 (per EN 60529)
Short-circuit-protected: Yes
Signaling: 1 x Status indication LED (green)
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Standards/Specifications: EN 60950-1; EN 61204-3; UL 60950-1; UL 508; DNV GL
Transient suppression (primary): Varistor
WAGO Connector: WAGO 740 Series
Weight: 255.000 g
Width: 2.83 in, 72 mm / 2.835 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 43232306
UPC: 04050821297598
$161.00 / Each
WAGO 787-1012 EPSITRON COMPACT power supply
Brand: Wago
Part Number: 787-1012
Additional Description: WAGO-787-1012 SWITCHED-MODE POWER SUPPLY; COMPACT; 1-PHASE; 24 VDC OUTPUT VOLTAGE; 2.5 A OUTPUT CURRENT 7871012 VOLTAGE; 2.5 A OUTPUT CURRENT 07871012
Catalog Description: Switched-mode power supply; Compact; 1-phase; 24 VDC output voltage; 2.5 A output current
787-1012 Application
Ideal for distribution boards/boxes , Suitable for both parallel and series operation787-1012 Item Features
- Switched-mode power supply
- Natural convection cooling when horizontally mounted
- Overhead mounting is possible with derating
787-1012 Standards
EN 61010-1|EN 61010-2-201|EN 61204-3|UL 60950-1|UL 508|DNV|RoHS Compliant|CE|IP20SKU #2247531Part Number #787-1012UNSPSC43232306UPC04050821297598
