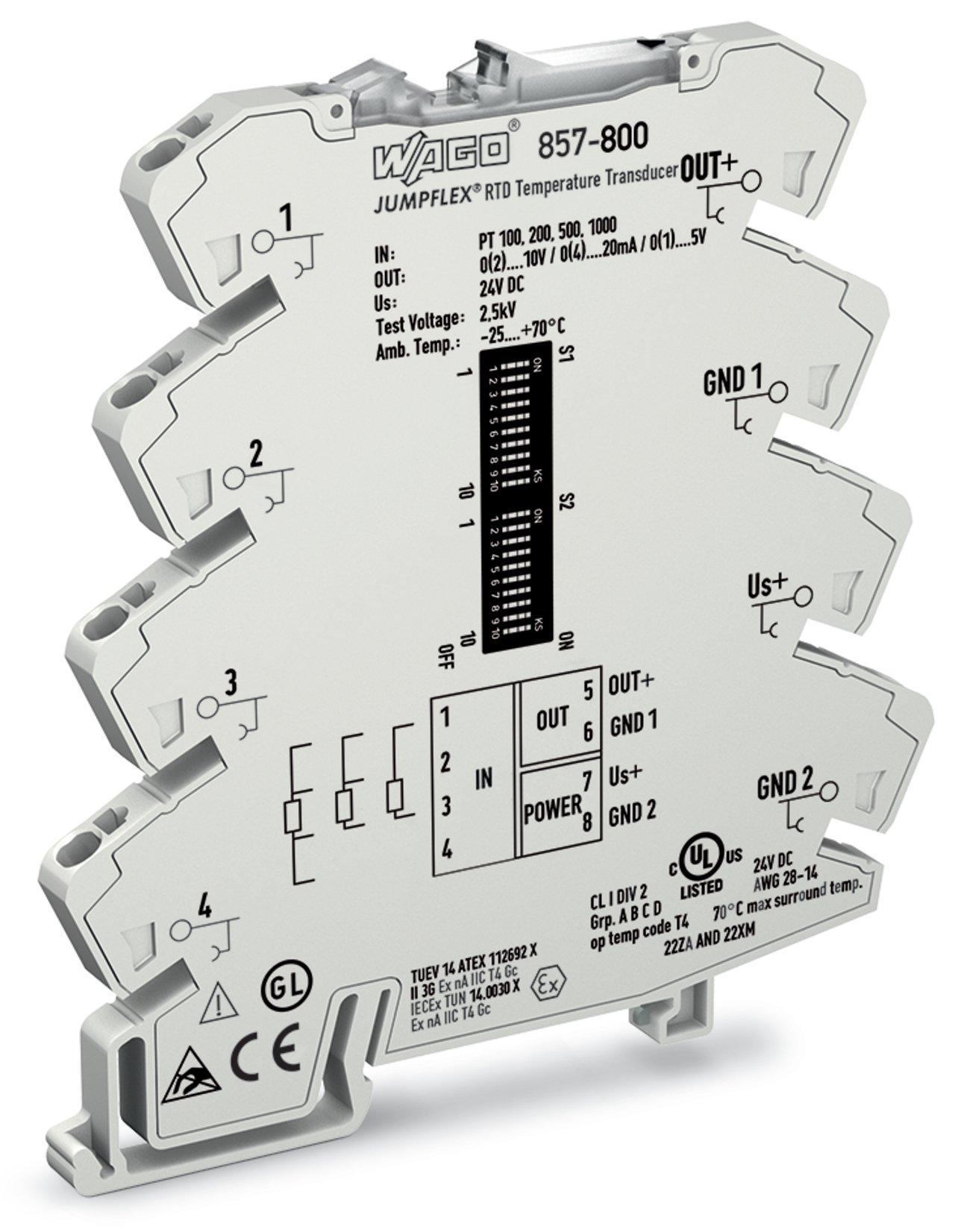

WAGO 857-800 JUMPFLEX signal conditioner
Part Number # 857-800
SKU # 2234035
$286.46 / Each
Wago 857-800 Key Features
Brand: Wago
Part Number # 857-800
SKU #2234035
Dimensions: 3.70 in H x 0.23 in W x 3.85 in D
Input Type: Resistive
Input Voltage: 24 VDC
Series: 857
Temperature Rating (Degrees F): -25 to 70 deg C
Type: Adjustable
Color: Light gray
Connection technology: Push-in CAGE CLAMP®
Connection type: Cage Clamp
Country of origin: DE
Depth: 94 mm / 3.701 inch
Input signal type: Pt sensors || Resistor
Mounting type: 35 mm DIN Rail, DIN-35 rail
Output current: 4 to 20 A
Output signal (current): 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA
Output signal (voltage): 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V
Output signal type: Current || Voltage
Output type: Current
Power consumption at nominal supply voltage: ≤ 40 mA
Power supply type: 24 VDC
Sensor connection: 2-wire; 3-wire; 4-wire (switchable)
Sensor power supply (RTD) (max.): ≤ 0.5 mA
Sensor types (RTD): Pt100 || Pt200 || Pt500 || Pt1000
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Supply voltage range: ±30 %
Weight: 35.300 g
Width: 6 mm / 0.236 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 43232306
UPC: 04045454470128
$286.46 / Each
- WAGO, 857-800, Signal Conditioner, Adjustable, Series: 857, Resistive Input, Current Output, 24 VDC Input, 4 to 20 A Output Current, Cage Clamp Connection, 35 mm DIN Rail Mounting, -25 to 70 deg C, Light Gray, 3.70 in H x 0.23 in W x 3.85 in D Dimensions
857-800 Item Features
- 2, 3 and 4-wire connection technology
- Calibrated measurement range switching
- Detects a sensor wire break/short circuit
- Detects measurement range underflow/overflow
- Clipping capabilityfor analog signal limitation to output end values
857-800 Standards
RoHS Compliant|DNVSKU #2234035Part Number #857-800UNSPSC43232306UPC04045454470128
