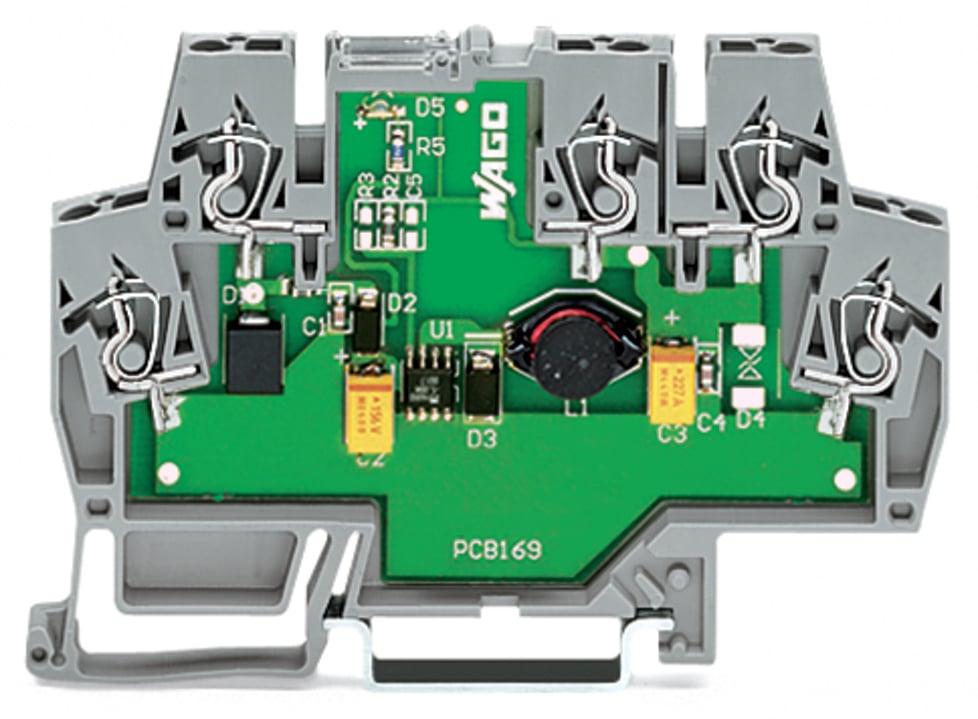

WAGO 859-802 DC/DC converter
Part Number # 859-802
SKU # 2172851
$74.95 / Each
Wago 859-802 Key Features
Brand: Wago
Part Number # 859-802
SKU #2172851
Input Voltage: 15 to 30, 15 to 30 VDC
Output Amperage: 500, 500 mA
Size: 0.236 in W x 3.583 in D
Temperature Rating (Degrees F): -25 to 55, -25 to 55 deg C
Color: Gray
Connection technology: CAGE CLAMP®
Country of origin: US
Depth: 91 mm / 3.583 inch
Mounting type: Carrier Rail 35 x 15, DIN-35 rail
Output voltage: 10, 10 VDC
Output voltage range: ±2 %
Protection class: III
Protection type: IP20 (per EN 60529)
Reverse voltage protection: Yes
Signaling: 1 x LED
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Switching frequency: 20 kHz (Nominal)
WAGO Connector: WAGO 859 Series
Weight: 41.100 g
Width: 6 mm / 0.236 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 43232306
UPC: 04050821083313
$74.95 / Each
- WAGO DC to DC Converter, 15 to 30 VDC Input, 10 VDC Output, 500 mA Output, Carrier Rail 35 x 15 Mount, -25 to 55 deg C, 0.236 in W x 3.583 in D, Gray
859-802 Item Features
- Front-entry wiring
- 5-potentials
- 100 ppm/deg C temperature coefficient
- Non-isolated
- 0.7% maximum load regulation
- 0.5% maximum line regulation
- 500 usec maximum transient recovery time
- 500 usec maximum hold time
- 200 kHz switching frequency
- 85% efficiency full load at 24 VDC
- 5 connection points
- Cage Clamp connection technology
- 28 to 14 AWG solid conductor
- 5 to 6 mm strip length
- 2.205 in height from upper-edge of Din-35 rail
859-802 Standards
RoHS CompliantSKU #2172851Part Number #859-802UNSPSC43232306UPC04050821083313
