Brand: Weidmuller

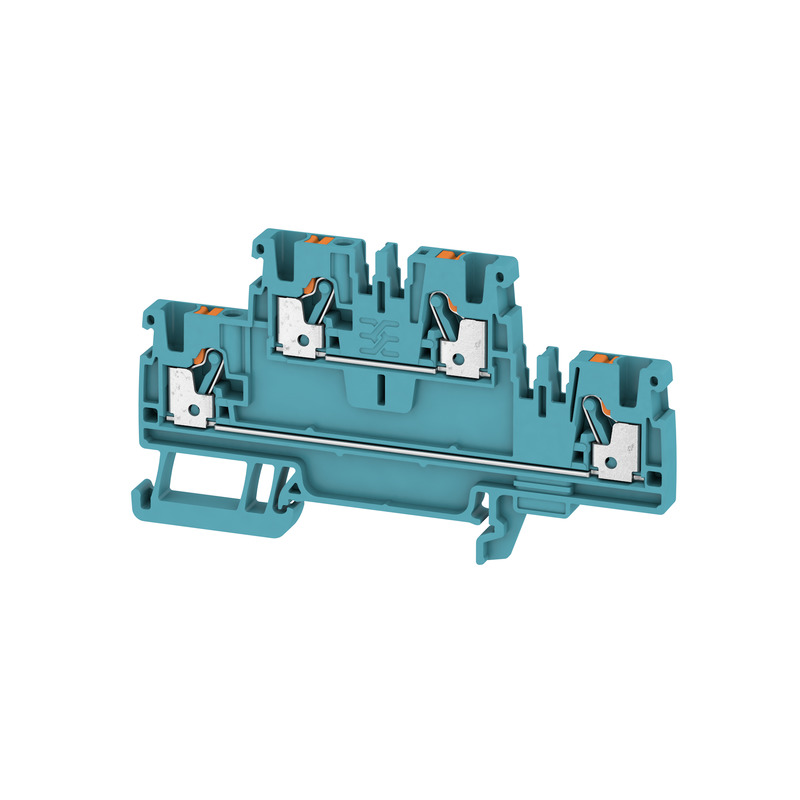

Weidmuller 1547620000 Terminal Blocks
Part Number # 1547620000
SKU # 2380998
$121.00 / 50Each
Weidmuller 1547620000 Key Features
Brand: Weidmuller
Part Number # 1547620000
SKU #2380998
Amperage Rating: 24 A
Dimensions: 90 mm H x 5.1 mm W x 50.5 mm D
Series: A Series
Temperature Rating (Degrees F): -60 to 130 deg C
Type: 3-Tier Modular Feed-Through
Voltage Rating: 800 V
Wire Size: 2.5 sq-mm
Color: Blue
Connection type: Push-In
Country of origin: DE
Material: Wemid
Mounting type: Snap-On
Manufacturer Name: Weidmuller
UNSPSC: 39121410
UPC: 04050118462845
$121.00 / 50Each
Weidmuller 1547620000 Terminal Blocks
Brand: Weidmuller
Part Number: 1547620000
Additional Description: WEID-1547620000 A2T 2.5 BL MULTI-TIER MODULAR TERMINAL, PUSH IN, 2.5 MM, 800 V, 24 A, NUMBER OF LEVELS: 2, BLUE, ORANGE
Catalog Description: Terminal block with several levels for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity. Space-saving design.
1547620000 Application
Power Distribution Applications1547620000 Item Features
- Spring connection with PUSH IN technology
- The innovative PUSH IN technology reduces the amount of time you spend on wiring to a minimum
- Direct insertion guarantees high conductor pull-out forces and simple handling for all conductor types
1547620000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|UL/cULus File No. E60693|CSA File No. 200039-70089609|ATEX File No. TUEV16ATEX7909U|IECEX File No. IECEXTUR16.0036U|EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU Label: II 2 G D|Bureau Veritas Approved|CE Certified|DNV-GL Approved|EAC CertifiedSKU #2380998Part Number #1547620000UNSPSC39121410UPC04050118462845
