1886550000

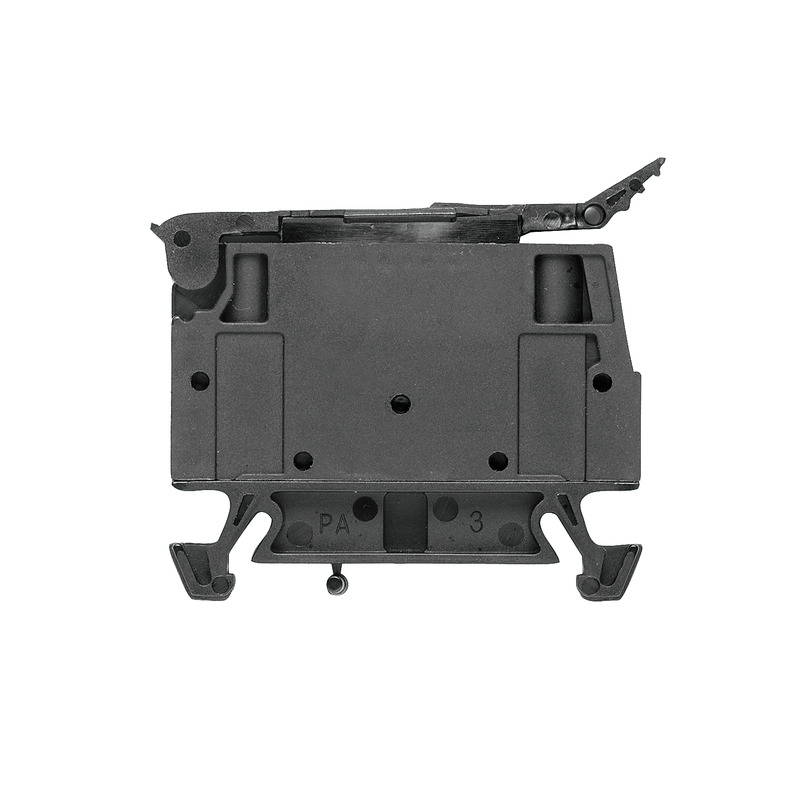

Weidmuller 1886550000 Electrical Terminal
Part Number # 1886550000
SKU # 2297541
$909.00 / 50Each
Typical price:$937.30 / Each
Weidmuller 1886550000 Key Features
Brand: Weidmuller
Part Number # 1886550000
SKU #2297541
Amperage Rating: 6.3 A
Dimensions: 50.7 mm H x 8 mm W x 42.5 mm D
Series: W Series
Temperature Rating (Degrees F): -50 to 120 deg C
Terminal Size: M2.5
Torque Rating: 0.4 to 0.4 N-m
Voltage Rating: 250 V
Wire Size: 4 sq-mm
Color: Black
Connection type: Screw
Country of origin: CN
Material: Wemid
Mounting type: Snap-On
Manufacturer Name: Weidmuller
UNSPSC: 39121410
UPC: 04032248492039
$909.00 / 50Each
Typical price:$937.30 / Each
SKU # 2297541
Part Number # 1886550000
- Klippon Fuse Terminal Block, Series: W Series, 250 V, 6.3 A, 4 sq-mm Wire, 8 mm Wire Strip Length, M2.5 Terminal, 0.4 to 0.4 N-m Torque, Snap-On Mounting, Screw Connection, -50 to 120 deg C, Wemid, Black, 50.7 mm H x 8 mm W x 42.5 mm D Dimensions
1886550000 Application
Overload and Short Circuit Protection Applications1886550000 Item Features
- Klippon connect with clamping yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
1886550000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|CSA File No. 200039-1575489|cULus File No. E60693|IEC 60947-7-3|CE Certified|EAC Certified|Lloyds Register|UL/cULus File No. E60693|CSA File No. 200039-1575489SKU #2297541Part Number #1886550000UNSPSC39121410UPC04032248492039
