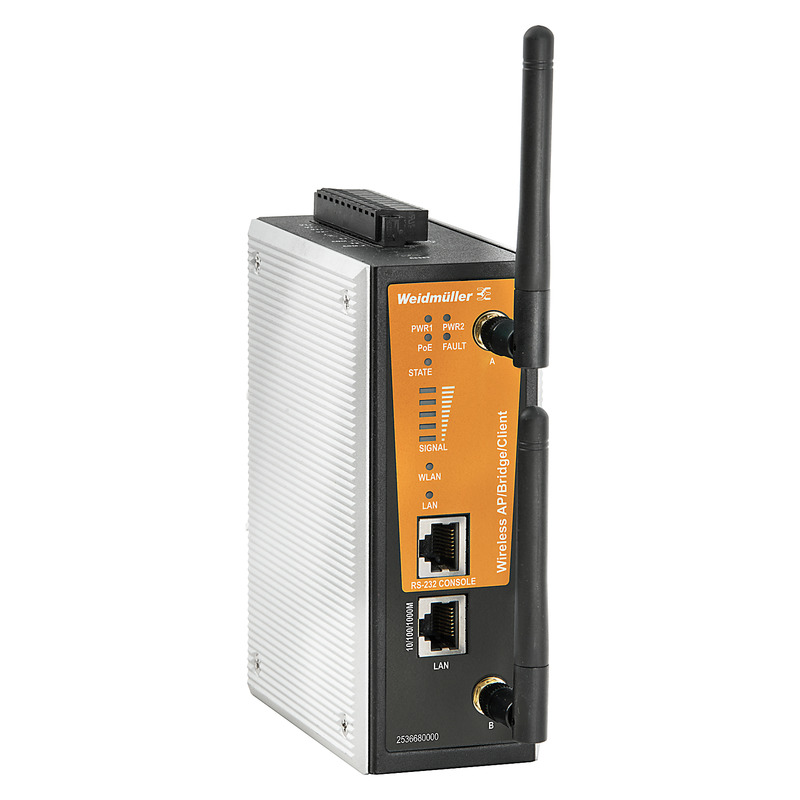

Weidmuller 2536700000 IE-WL-VL Wireless Access Point/Bridge/Client
Part Number # 2536700000
SKU # 2369881
$1112.46 / Each
Weidmuller 2536700000 Key Features
Brand: Weidmuller
Part Number # 2536700000
SKU #2369881
Antenna Type: 2 dBi Omni-Directional Dual Band Antenna, RP-SMA (Male Plug)
Dimensions: 52.7 mm W x 105 mm D x 135 mm H
Frequency Rating: 2.412 to 2.462 GHz
Humidity: 5 to 95 %
Power Rating: 7.2 W
Series: IE-WL-VL
Specifications: 0.6 A at 12 VDC, 0.15 A at 48 V DC Current Consumption, 2 x RP-SMA Female Connector, IP30 Protection Class
Temperature Rating (Degrees F): -25 to 60 deg C
Material: Metal
Mounting type: DIN Rail/Panel
UNSPSC: 43222612
UPC: 04050118548716
$1112.46 / Each
Weidmuller 2536700000 IE-WL-VL Wireless Access Point/Bridge/Client
Brand: Weidmuller
Part Number: 2536700000
Additional Description: WEID-2536700000 IE-WL-VL-AP-BR-CL-US WLAN ACCESS POINT
Catalog Description: Industrial IEEE 802.11 a/b/g WLAN module for wireless communication in Ethernet networks. The device can be flexibly used as access point, client or bridge. The power supply can alternatively be provided via PoE (Power over Ethernet) and thus enable a relatively simple integration into existing infrastructures.
2536700000 Item Features
- IEEE 802.11a/b/g/n compliant access point/client/bridge
- MIMO technology for data rates up to 300 Mbps
- Fast roaming for interruption-free connection switching between access points
- DFS support in the 5 GHz band
- Power supply via PoE to IEEE 802.3af possible
- Integrated DI/DOs for monitoring and alarms
SKU #2369881Part Number #2536700000UNSPSC43222612UPC04050118548716
