WAGO TOPJOB®S Rail-Mount Terminal Blocks

3/7/2019

ByCody Bohl

Contributing author: Ed Naczek, Product Manager – DIN Rail Mount Terminal Blocks, WAGO

The TOPJOB® S family, with push-in CAGE CLAMP®, was the first to introduce push-in wiring for rail mount terminal blocks. Since its introduction, new features and benefits have been added every year. Taking yet another leap forward, the family now offers levers and push-buttons for convenient and intuitive wire termination while maintaining the vibration-proof, gas-tight, corrosion and thermal-cycling resistant connection the industry has come to expect from us.

Levers have long been associated with simplifying an action and the TOPJOB® S terminal blocks with lever operation are no different. With a lever on one side and an open tool slot or push-button on the other, wiring tasks are not only easy but also intuitive.

Lever Advantages include:

  • Simple - lever up, insert conductor, lever down – done
  • Intuitive - tool-free operation ideal for field wiring
  • Secure – opened lever “clicks” securely into place for hands-free wiring
  • Hands-free - means both hands are free to cut, strip and insert the conductor

Push-button operation has been part of the WAGO product offering since the founding of the company. Primarily used in PCB and chassis mount terminal blocks, it is now offered in our TOPJOB®S rail mount terminal block family.

Advantages of push-button include:

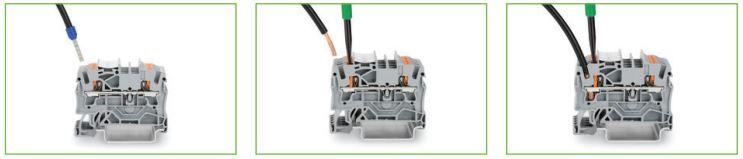

  • Simple - press down orange push-button with tool, insert conductor, release – done
  • Intuitive - orange push-button clearly distinguishes wire entry from tool entry
  • Options – push-button for rail-mount, as well as PCB and chassis mount, terminal blocks
  • Unique push-button design ensures operation integrity with positive feedback

The first member of the TOPJOB® S family and the one that started the “push-in” wiring revolution for rail mount terminal blocks. It introduced direct push-in of solid or ferruled conductors while also allowing traditional tool operation for all conductor types, just like the original CAGE CLAMP®.

Open Tool Slot Advantages

  • Simple – insert tool, insert conductor, remove tool – done
  • Innovative – industry’s first push-in wiring rail mount terminal block
  • Secure – inserted tool is locked into place for hands-free wiring
  • Hands-free - means both hands are free to cut, strip and insert the conductor
