Part Number # THN3363R
SKU # 2460701
THN3363R
ABB THN3363R
Part Number # THN3363R
SKU # 2460701
$662.51 / Each
Typical price:$830.00 / Each
ABB THN3363R Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | THN3363R |
| SKU #: | 2460701 |
| Dimensions: | 17.3 in H x 9.3 in W x 4.9 in D |
| Series: | THN |
| Temperature Rating (Degrees F): | 60/75 deg C |
| UNSPSC: | 39122205 |
| UPC: | 00783164011333 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$662.51 / Each
Typical price:$830.00 / Each
Quantity:

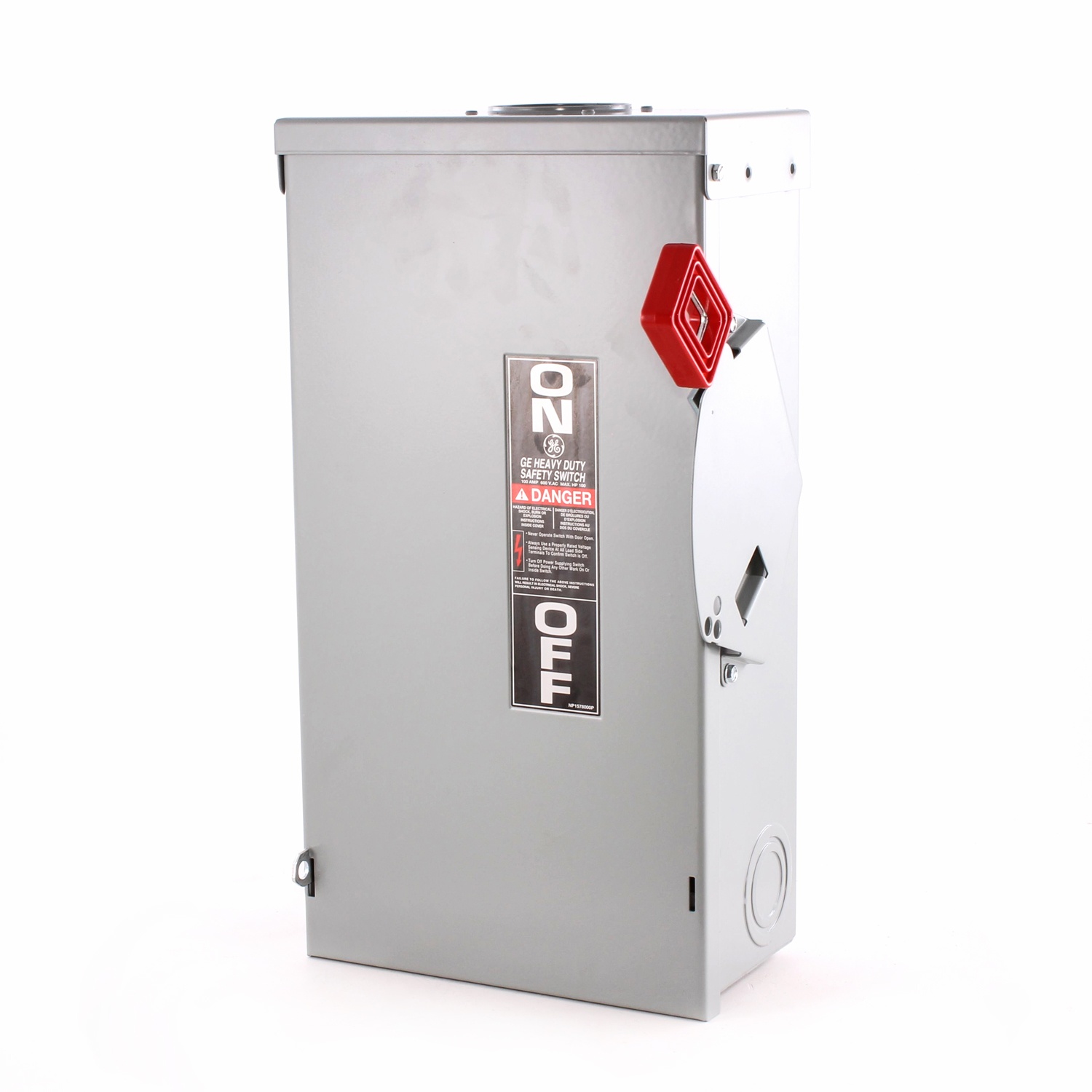

- GE Spec-Setter Safety Switch, Heavy Duty Non-Fusible, Series: THN, 600 V AC, 100 A, 100 hp, 3 ph, 50/60 Hz Frequency, 3 Pole, 3 Wires, 200 kA Short Circuit, Handle Actuator, NEMA 3R Enclosure, Surface Mounting, 60/75 deg C, 17.3 in H x 9.3 in W x 4.9 in D Dimensions
THN3363R Application
Commercial, Industrial, Electrical Distribution and Control ApplicationsTHN3363R Item Features
- Donut handle ideal for hook stick operation and accepts 3 padlocks in the off position
- Direct drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive on/off indication
- Self-leveling, 3-point mounting system
- Coin-proof, defeatable interlock
- Visible confirmation of plated blade contact positions
- Spring reinforced fuse clips assure reliable contact for cool operation
- Suitable for class H, K, J or R fuses, where applicable
- With class R fuses or J fuses, 30 to 600 A switches have UL listed short circuit rating of 200000 rms symmetrical A
- UL listed as service entrance equipment when installed in accordance with the national electric code
- Switches rated 800 to 1200 A use class L fuses and have a UL listed short circuit rating of 10000 rms symmetrical A
THN3363R Standards
YesSKU #2460701Part Number #THN3363RUNSPSC39122205UPC00783164011333
Image provided may only be a representation of final product and may include optional equipment
