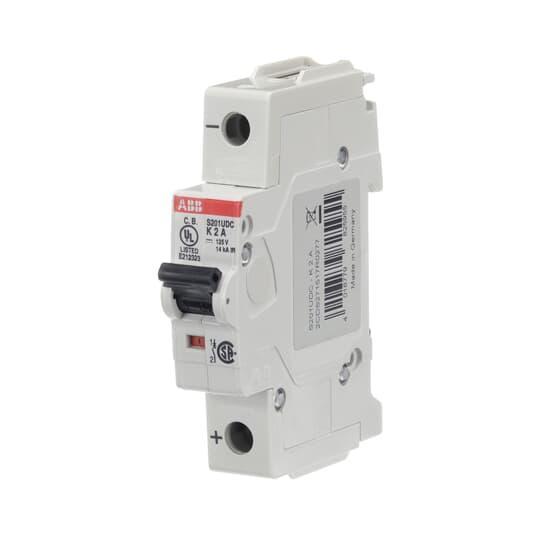

ABB S201UDC-K2 Miniature Circuit Breaker
Part Number # S201UDC-K2
SKU # 2217204
$57.12 / Each
ABB S201UDC-K2 Key Features
Brand: ABB
Part Number # S201UDC-K2
SKU #2217204
Actuator Type: Toggle
Amperage Rating: 2, 2 A
Dimensions: 71 mm L x 17.5 mm W x 92 mm H
Enclosure Type: IP20
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 14, 14 kA
Number of Poles: 1
Power Rating: 1.8, 1.8 W
Series: S200UDC
Temperature Rating (Degrees F): -25 to 55, -25 to 55 deg C
Trip Range: 1.05 to 1.2 A, 8 to 12 A
Trip Type: Electro-Mechanic/K-Curve/Thermal Magnetic, K-Curve/Electromechanic/Thermal Magnetic
Type: High Performance
Voltage Rating: 60/125, 60/125 VDC
Wire Size: 18 to 4 AWG, 18 to 8 AWG
Color: Light gray
Connection type: Screw
Country of origin: DE
Mounting type: DIN Rail
Manufacturer Name: ABB
UNSPSC: 39121603
UPC: 04016779825955
$57.12 / Each
ABB S201UDC-K2 Miniature Circuit Breaker
Brand: ABB
Part Number: S201UDC-K2
ABB Miniature Circuit Breaker, High Performance, Series: S200UDC, 60/125 VDC, 2 A, 1.8 W Power, 50/60 Hz Frequency, 14 kA Interrupt, K-Curve/Electromechanic/Thermal Magnetic Trip, 1.05 to 1.2 A, 8 to 12 A Trip, 1 Pole, Toggle Actuator, Screw Connection, 18 to 4 AWG, 18 to 8 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 71 mm L x 17.5 mm W x 92 mm H Dimensions, Light Gray
Additional Description: ABB -S201UDC-K2 S200UDC MCB 1P K 2A 60VDC BCPD
Catalog Description: .
S201UDC-K2 Application
For allowing higher in-rush current during system start-up example motors and transformer applicationsS201UDC-K2 Item Features
- High performance MCB provides compact supplementary, energy limiting and circuit protection
- Current limiting
- Fast breaking time
- Bus connection system
- Suitable for reverse feed applications
- For use with inductive loads
- Screw terminal type - cable clamp
- Actuator type - Insulation group II, black, sealable
- 8 to 12 A magnetic and 1.05 to 1.2 A thermal
- 18 to 4 AWG conductor, 18 to 8 AWG busbar
- Finger-safe and multi-function terminals
- Auxiliary contact
S201UDC-K2 Standards
UL 489|UL File No. E212323|VDE 0660|IEC 60947-2SKU #2217204Part Number #S201UDC-K2UNSPSC39121603UPC04016779825955
