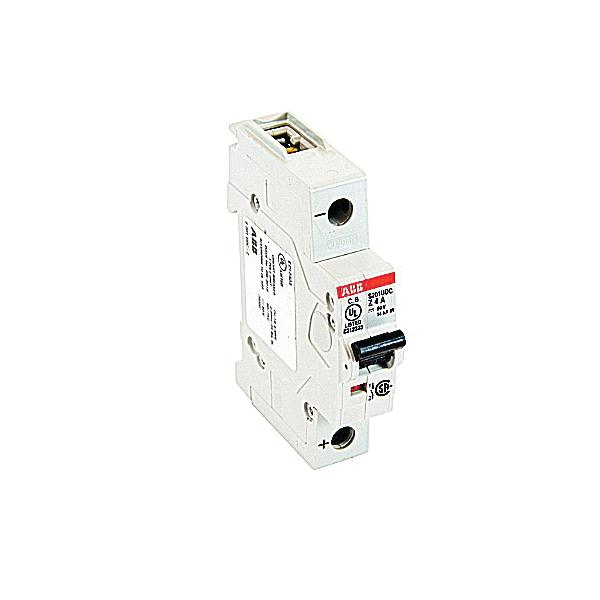

ABB S201UDC-Z4 System pro M Miniature Circuit Breaker
Part Number # S201UDC-Z4
SKU # 2269449
$60.30 / Each
ABB S201UDC-Z4 Key Features
Brand: ABB
Part Number # S201UDC-Z4
SKU #2269449
Amperage Rating: 4, 4 A
Dimensions: 71 mm L x 17.5 mm W x 92 mm H
Enclosure Type: IP20
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 14, 14 kA
Number of Poles: 1
Series: S200UDC
Temperature Rating (Degrees F): -25 to 55, -25 to 55 deg C
Trip Type: K-Curve/Electromechanic/Thermal Magnetic
Type: High Performance
Voltage Rating: 60/125, 60/125 VDC
Wire Size: 18 to 4, 18 to 4 AWG
Connection type: Screw
Country of origin: DE
Mounting type: DIN Rail
Manufacturer Name: ABB
UNSPSC: 39121603
UPC: 04016779826174
$60.30 / Each
- ABB System pro M compact, S201UDC-Z4, Miniature Circuit Breaker, High Performance, Series: S200UDC, 60/125 VDC, 4 A, 50/60 Hz Frequency, 14 kA Interrupt, K-Curve/Electromechanic/Thermal Magnetic Trip, 1 Pole, Screw Connection, 18 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 71 mm L x 17.5 mm W x 92 mm H Dimensions
S201UDC-Z4 Application
Use to provide maximum protection with a very low short circuit trip setting example semiconductors and control circuitsS201UDC-Z4 Item Features
- Auxiliary contacts for circuit breaker
- High performance MCB provides compact supplementary, energy limiting and circuit protection
- Auxiliary contact
- Finger safe and multi-function terminals
- Electromechanic tripping mechanism for short circuit protection
S201UDC-Z4 Standards
UL 489|UL File No. E212323|VDE 0660|IEC 60947-2|CSA C22.2 No. 5|CE Certified|IEC 60947-2|UL 489|UL File No E212323|VDE 0660SKU #2269449Part Number #S201UDC-Z4UNSPSC39121603UPC04016779826174
