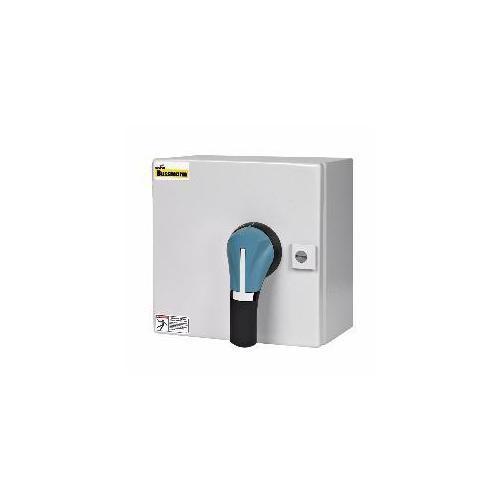

Bussmann ER4-60N3PB Enclosed Rotary Disconnect Switch
Part Number # ER4-60N3PB
SKU # 2391655
$2747.86 / Each
Bussmann ER4-60N3PB Key Features
Brand: Bussmann
Part Number # ER4-60N3PB
SKU #2391655
Actuator Type: Black Pistol Handle
Amperage Rating: 60 A
Dimensions: 8 in W x 6 in D x 10 in H
Enclosure Type: NEMA 4
Horsepower: 50 hp
Number of Poles: 3
Series: ER
Short Circuit Current Rating (kA): 100 kA
Temperature Rating (Degrees F): -20 to 70 deg C
Type: Non-Fused
Voltage Rating: 600 VAC
Country of origin: US
Manufacturer Name: Eaton
UNSPSC: 39122205
UPC: 00051712488259
$2747.86 / Each
- Bussmann Enclosed Rotary Disconnect Switch, Non-Fused, Series: ER, 600 VAC, 60 A, 50 hp, 3 Pole, 100 kA Short Circuit Current Rating, Black Pistol Handle Actuator, NEMA 4, -20 to 70 deg C, 8 in W x 6 in D x 10 in H
ER4-60N3PB Application
General Purpose, Main Disconnect, Branch Circuit Protection, Stationary Machine Equipment in Factory and Robotics ApplicationsER4-60N3PB Item Features
- Multiple field installed accessories enhance the enclosed disconnect switches to fit the desired application
- Lockout/tagout up to three 1/4 in shank padlocks can be installed on external handles
- https://www.youtube.com/watch?v=YMvqUyoETXk
ER4-60N3PB Standards
CE Certified|CSA 22.2 File No. 14|cULus Listed|IEC 60947-3|UL 98 File No. E182262 Guide WIAX/WIAX7SKU #2391655Part Number #ER4-60N3PBUNSPSC39122205UPC00051712488259
