BMXP3420302H

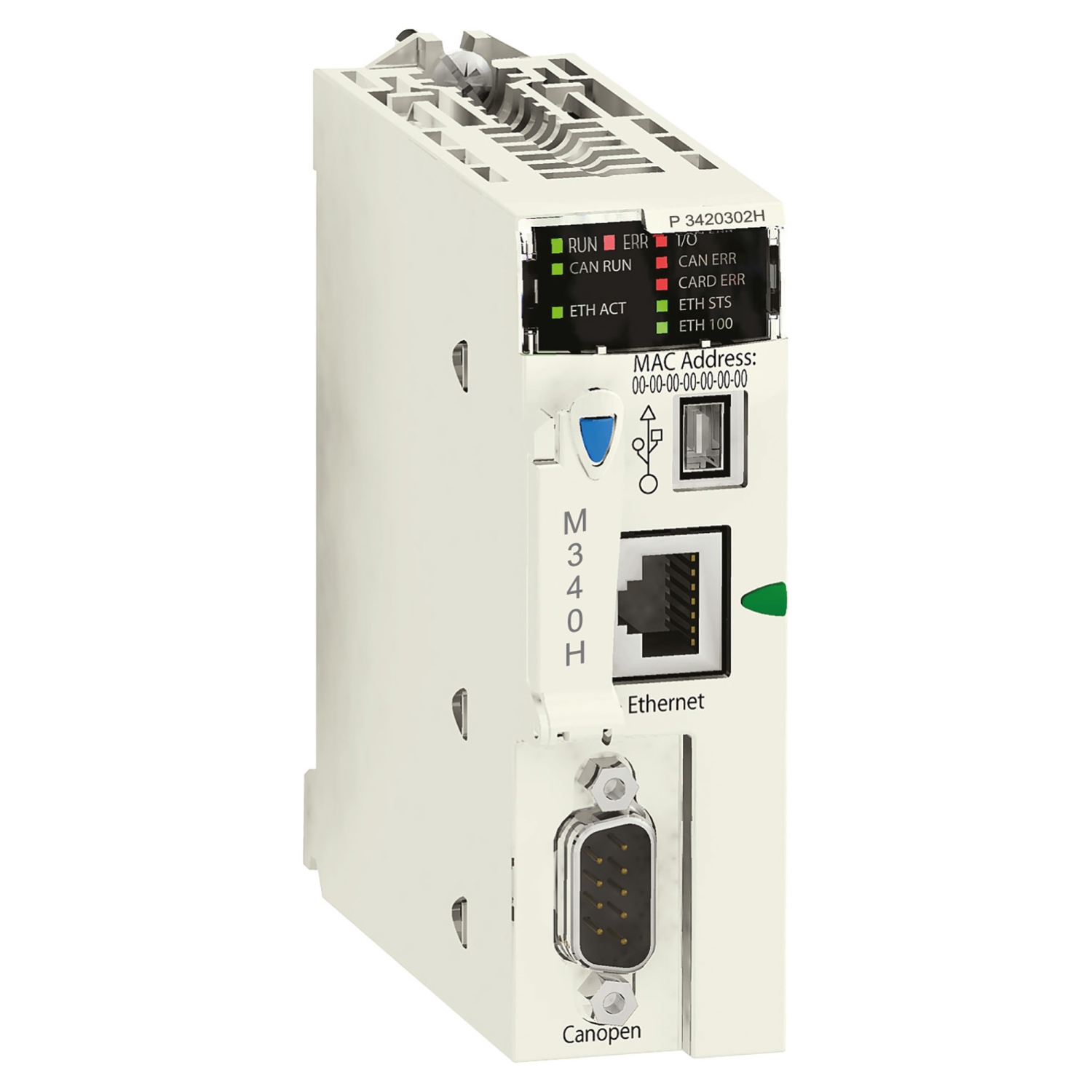

Schneider Electric BMXP3420302H Processor module
Part Number # BMXP3420302H
SKU # 2442273
$3986.08 / Each
Schneider Electric BMXP3420302H Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | BMXP3420302H |
| SKU #: | 2442273 |
| Operating Temperature: | -13 to 158 deg F |
| Type: | Processor module |
| Country of origin: | US |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 26101205 |
| UPC: | 03595864024493 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3986.08 / Each
Quantity:
- Schneider Electric BMXP3420302H, Processor module, USB Port 12 Mbps CAN/Open Master Bus SUB-D 9 2 Twisted Shielded Pairs 20 kbps to 1 Mbps/Ethernet TCP/IP RJ45 1 twisted pair 10/100 Mbps Communication Ports, -13 to 158 deg F Operating
BMXP3420302H Application
For backup of programs, constants, symbols and data, For process industries, renewable energies, water, cement, manufacturing, infrastructures and machinesBMXP3420302H Item Features
- Modicon M340 PACs can be used individually, but are also the perfect companion to the Modicon M580. Together they can increase the performance, quality, and the profitability of your machine production, industrial process, or infrastructure project
- 7 Kinst/ms
- Multitasking system for guaranteed reflex time
- Programmed with UnityTM Pro software
- Two additional ports as required: Ethernet, CANopen, ModbusTM
- Programming code up to 70 Kinst
- Application back-up in supplied memory card
- Additional file storage up to 128 MB with FTP access
- No battery required
- Extended temperature (-25 deg C +70 deg C) and conformal coating for operation in harsh environments
- Protection of SI and OEM know-how by use of SD card technology
- Replace or Hot-swap I/O Modules without stopping process
- CCOTF - Configuration Change On The Fly. No need to stop the process to expand system
- FTD/DTM configuration tools for plug n play device integration. Simplifies configuration, commissioning, and maintenance
- Takes full advantage of the flexible Modicon X80 I/O platform. Over 80+ modules
- CANopenTransparent Ready concept
- 11 number of slots
- 1024 I/O multi-rack configuration704 I/O single-rack configuration discrete i/o processor capacity
- 256 I/O multi-rack configuration66 I/O single-rack configuration analogue i/o processor capacity
BMXP3420302H Standards
EN/IEC 61131-2|EN/IEC 61010-2-201UL 61010-2-201|CSA C22.2 No 61010-2-201IACS E10|EN/IEC 61000-6-5, interface type 1 and type 2|EN/IEC 61850-3, location G|EN/IEC 60079-0|CEUL|CSA|RCM|EACMerchant NavyATEX zone 2/22IECEx zone 2/22|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2442273Part Number #BMXP3420302HUNSPSC26101205UPC03595864024493
