Siemens 3RT1066-6AF36 SIRIUS IEC Contactor

Siemens 3RT1066-6AF36 SIRIUS IEC Contactor

Brand: Siemens

Part Number: 3RT1066-6AF36

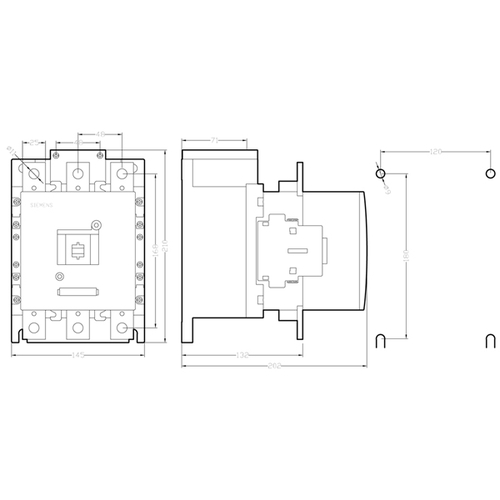

Siemens SIRIUS IEC Contactor, Standard, 110 VAC, 127 VDC Coil, 300 A Maximum Load Current, 590 VA Pickup, 6.7 VA Holding Coil, 3 Pole, 50/60 Hz Frequency, 160 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 4 Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.9 Closing, 0.9 Holding, Bar/Screw Connection, Size S10 Size, Busbar Terminal, IP00 Enclosure, 10000000 Cycles Contactor/Typical Operating Cycles, -25 to 60 deg C Operating, Panel Mounting, 210 mm H x 145 mm W x 202 mm D Di

Additional Description: SIEM-3RT1066-6AF36 CONTACTOR S10 300A 110-127VUC 3P BAR 110-127VUC 3P

Catalog Description: Contactor,IEC,Sirius,Standard 3 Pole,Non-Reversing 110 - 127 AC/DC Coil Frame Size S10,300A Panel Mount 2 NO ( & ) 2 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 3
