Part Number # QO148L125GRB
SKU # 847630
Image provided may only be a representation of
final product and may include optional equipment
QO148L125GRB

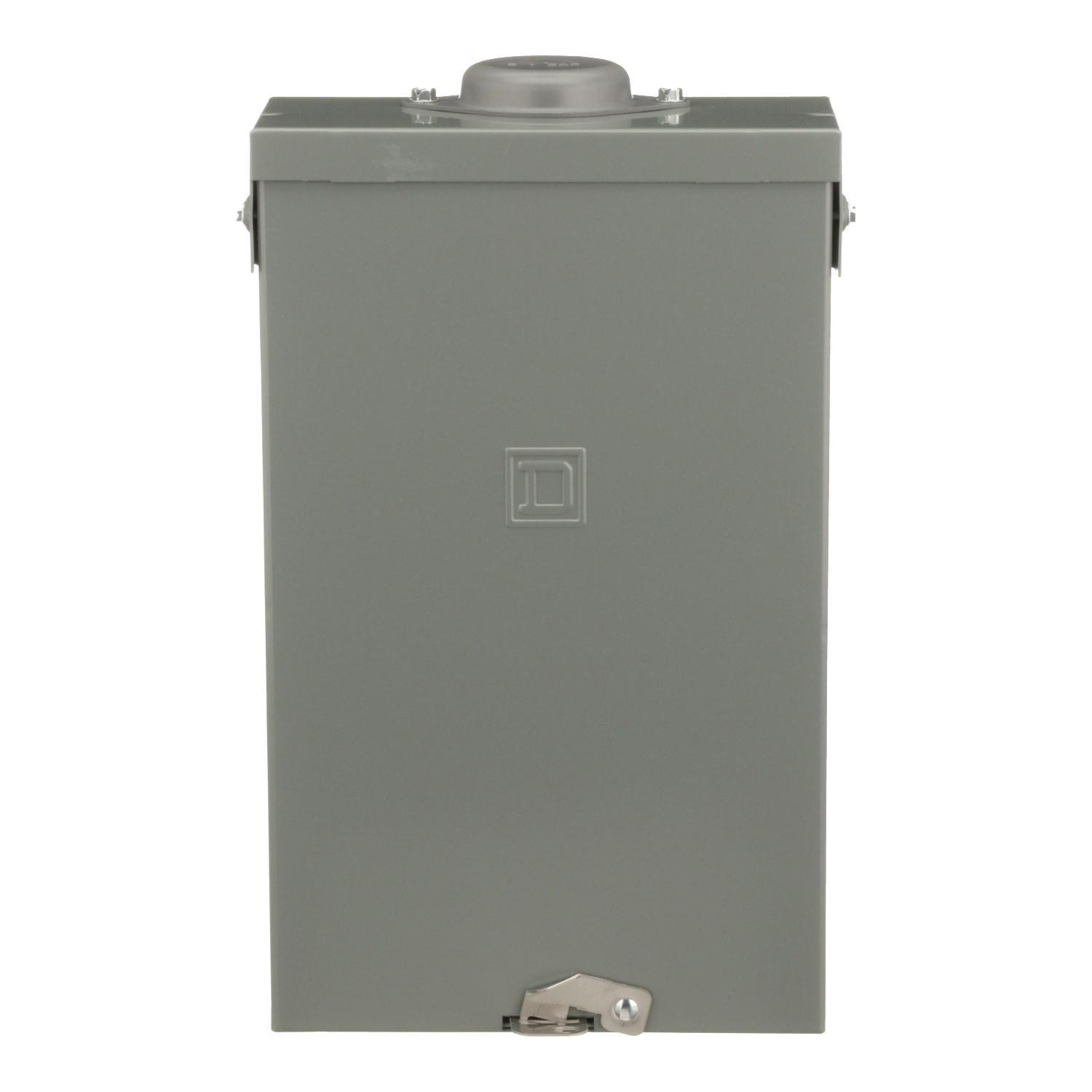

Square D QO148L125GRB Qo Main Lug Load Center
Part Number # QO148L125GRB
SKU # 847630
Square D QO148L125GRB Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | QO148L125GRB |
| SKU #: | 847630 |
| Amperage Rating: | 125 A |
| Breaker Mounting: | Panel |
| Breaker Type: | QO |
| Dimensions: | 14.8 in H x 8.88 in W x 4.27 in D, 8.88 in W x 4.27 in D x 14.8 in H |
| Enclosure Box Size: | NEMA 15R |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 10, 10 kA |
| Number of Circuits: | 8 |
| Number of Poles: | 1 |
| Number of Spaces: | 4 |
| Type: | 1-Phase Fixed Rainproof |
| Wire Size: | 14 to 2/0 AWG, 12 to 2/0 AWG |
| Wiring Configuration: | 3-Wire |
| Country of origin: | MX |
| Housing material: | Steel |
| Mounting type: | Bolt-On |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121101 |
| UPC: | 00785901484394 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D QO148L125GRB Qo Main Lug Load Center
Brand: Square D
Part Number: QO148L125GRB
Square D QO Main Lug Load Center, 1-Phase Fixed Rainproof, 120/240 VAC, 125 A, 1 Pole, 50/60 Hz Frequency, 10 kA Interrupt, 8 Circuits, QO Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 4 Spaces, 14 to 2/0 AWG, 12 to 2/0 AWG Wire, Bolt-On Mounting, NEMA 3R Enclosure, NEMA 15R Enclosure Box, Steel Housing Material, 8.88 in W x 4.27 in D x 14.8 in H Dimensions
Additional Description: SQD -QO148L125GRB LOAD CENTER QO MLO 240V 125A 1PH 4SP
Catalog Description: Load center, QO, 1 phase, 4 spaces, 8 circuits, 125A fixed main lugs, NEMA3R, gnd bar
QO148L125GRB Application
For outdoor, residential, commercial, industrial requirements to protect electrical systems, equipment and people applicationsQO148L125GRB Includes
Field Installed Grounding Bar and Surface CoverQO148L125GRB Item Features
- QO Load center provides superior performance and durability
- Straight in wiring saves wire, labor, and time
- Compatible with any Square D QO Circuit Breaker
- The fully distributed neutral bar allows for QO plug-on neutral circuit breakers in any space
QO148L125GRB Standards
RoHS Compliant|UL Listed|NOM Certified|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.govQO148L125GRB Warranty
18 monthsSKU #847630Part Number #QO148L125GRBUNSPSC39121101UPC00785901484394
