Part Number # GUV2025
SKU # 2323980

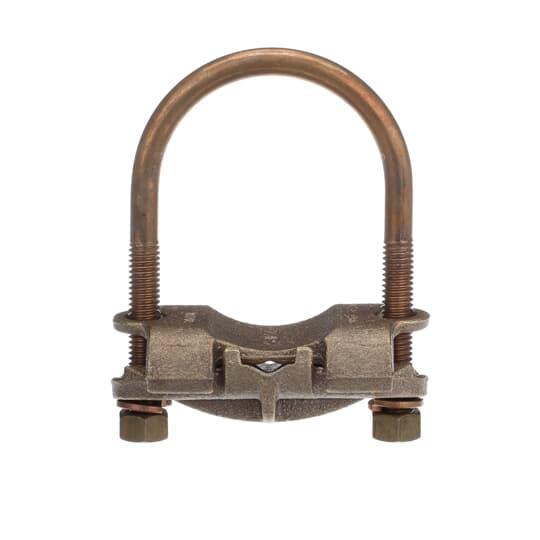

Image provided may only be a representation of
final product and may include optional equipment
GUV2025
Thomas & Betts GUV2025 Blackburn U-Bolt Grounding Clamp
Part Number # GUV2025
SKU # 2323980
Thomas & Betts GUV2025 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | GUV2025 |
| SKU #: | 2323980 |
| Conductor Size: | 2/0 AWG to 250 kcmil |
| Conductor Type: | Copper/Copper Clad Steel |
| Dimensions: | 4-7/16 in L x 3-11/16 in W x 1-9/16 in D |
| Type: | Type GUV Non-Insulated |
| Country of origin: | IN |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121613 |
| UPC: | 00783786803668 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts GUV2025 Blackburn U-Bolt Grounding Clamp
Brand: Thomas & Betts
Part Number: GUV2025
Blackburn E-Z Ground U-Bolt Grounding Clamp, Type GUV Non-Insulated, 2 in Pipe, 2 to 2-3/8 in Rod, Copper/Copper Clad Steel Conductor, 2/0 AWG to 250 kcmil Conductor, Copper, 4-7/16 in L x 3-11/16 in W x 1-9/16 in D
Additional Description: TB -GUV2025 U BOLT GROUND CLAMP 250-2/0
Catalog Description: U-Bolt Copper Ground Clamp, Stainless Steel U-Bolt, Wire Range 2/0 - 250, Rod Size 2 to 2-3/8 Inches, IPS Pipe Size Max 2 Inches, Length 4-7/16 Inches, Width 3-11/16 Inches, Depth 1-9/16 Inches
GUV2025 Application
For connecting copper or copper clad steel grounding conductor to ground rod or pipeGUV2025 Item Features
- Specially designed spacer provides proper alignment between cable and electrode and affords more positive contact area
- Excellent for connecting multiple electrodes with a single cable, such as in substation grounding
- All components cast or forged from copper alloy
- Listed for direct burial in earth or concrete
- GUV body components are cast or forged from copper alloy and U-bolts are stainless steel
GUV2025 Standards
CSA 12798|DB Rated|UL File No. E3060SKU #2323980Part Number #GUV2025UNSPSC39121613UPC00783786803668
