Brand: Weidmuller
1348590000

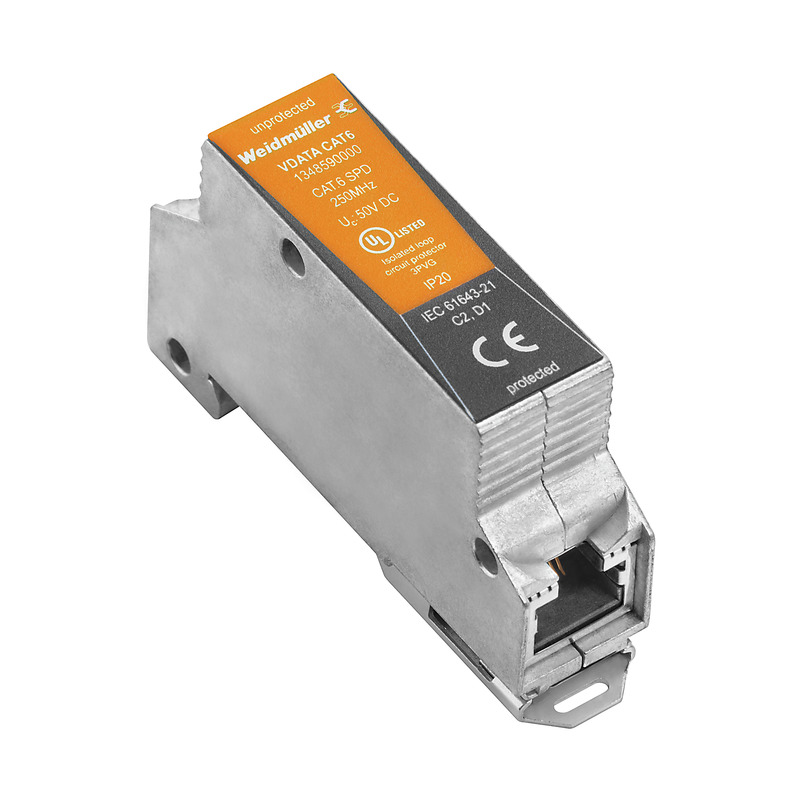

Weidmuller 1348590000 Surge Protection
Part Number # 1348590000
SKU # 2272644
$146.57 / Each
Typical price:$162.81 / Each
Weidmuller 1348590000 Key Features
Brand: Weidmuller
Part Number # 1348590000
SKU #2272644
Bandwidth: 250 MHz
Class: Class E
Dimensions: 75 mm H x 19 mm W x 46 mm D
Electrical Ratings: 48 VDC at 1 A
Enclosure Type: IP20
Environmental Conditions: -40 to 80 deg C Operating Temperature, -40 to 85 deg C Storage Temperature, 0 to 95% Humidity
Peak Surge Current: 10 kA
Response Time: < 1 ns
Type: Terminal Rail Fixing
Color: Silver Gray
Country of origin: SI
Material: Metal
Manufacturer Name: Weidmuller
UNSPSC: 39121634
UPC: 04050118153002
$146.57 / Each
Typical price:$162.81 / Each
SKU # 2272644
Part Number # 1348590000
- Weidmuller Surge Protection, Terminal Rail Fixing, 48 VDC at 1 A Electrical Rating, 250 MHz Bandwidth, 10 kA Peak Surge Current, 5 kA Nominal Discharge, < 1 ns Response, Class: Class E, Environmental Conditions: -40 to 80 deg C Operating Temperature, -40 to 85 deg C Storage Temperature, 0 to 95% Humidity, IP20 Enclosure, 75 mm H x 19 mm W x 46 mm D Dimensions, Metal, Silver Gray
1348590000 Item Features
- Suitable for Cat5 (up to 100 MHz) and Cat 6 (up to 250 MHz Class E)
- Suitable for PoE (acc to IEEE 802.3af) and PoE (acc to IEEE 802.3at)
- Protection of all wire pairs
- Connection via RJ45 sockets
- Metal housing
1348590000 Standards
UL File No. E311081|RoHS Compliant|CE Certified|EAC CertifiedSKU #2272644Part Number #1348590000UNSPSC39121634UPC04050118153002
